Article number: 1.41.203

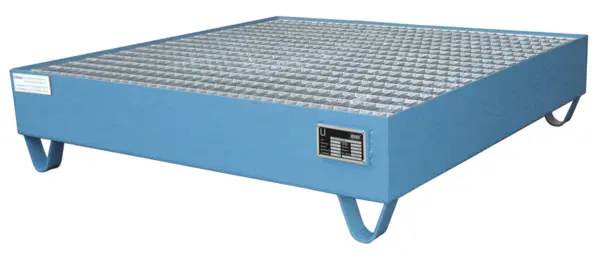

Collection tray of sheet steel painted for 4 x 200 l-drum
Item is available for order
- square -
dim.: 1200 x 1200 x 285 (W x D x H mm)
Collection volume: 210 l
Sheet steel painted to RAL 5012 lightblue,
material strength 3 mm
with galvanised removable grating.
Ground clearance approx. 100 mm.
load 1000 kg
suitable for flammable liquids F+ F
and water polluting liquids WGK 1-3
Testings:
with declaration of conformity (ÜHP)
according to StawaR
Tested by TÜV
dim.: 1200 x 1200 x 285 (W x D x H mm)
Collection volume: 210 l
Sheet steel painted to RAL 5012 lightblue,
material strength 3 mm
with galvanised removable grating.
Ground clearance approx. 100 mm.
load 1000 kg
suitable for flammable liquids F+ F
and water polluting liquids WGK 1-3
Testings:
with declaration of conformity (ÜHP)
according to StawaR
Tested by TÜV
Technical details
Product range
Safety equipment
HW-category
Collecting trays
Outer width approx.
1200 mm
Outer depth approx.
1200 mm
Outer height approx.
285 mm
Weight (product) approx.
87 kg
Downloads
Delivery and Shipping Details
For the dispatch and delivery of your safety storage cabinet, we rely on the highest level of reliability. Each cabinet is delivered directly to the desired location by our tried and tested logistics partners. Depending on the agreement, dispatch is free to the point of use, free to the door or ex works. If you have any special delivery requirements, e.g. an installation service, please contact us in advance. We will ensure that everything runs smoothly so that your cabinet arrives safely and on time.
