Article number: 9.83.785

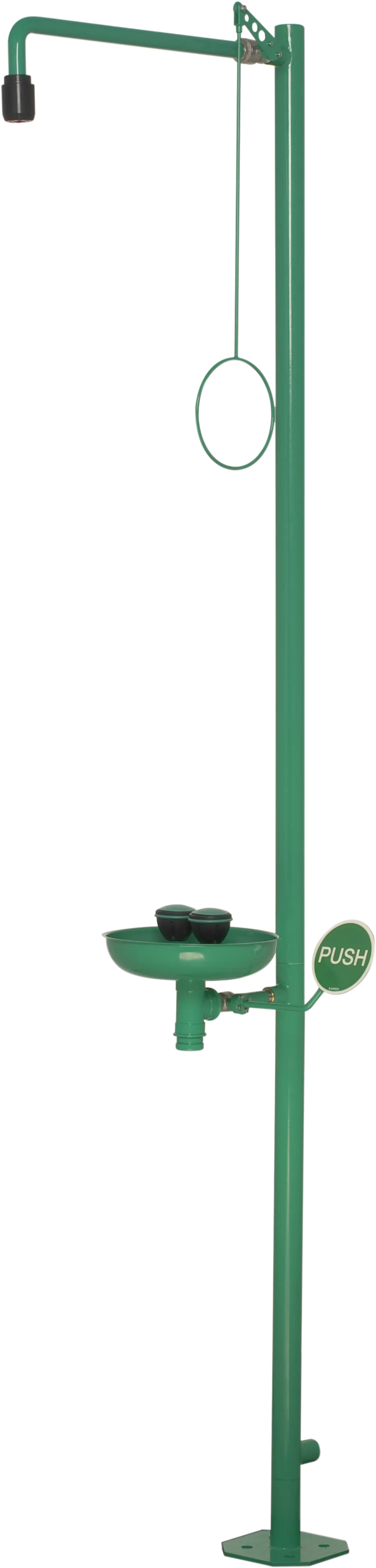

Combination shower, stainless steel, free-standing
Item is available for order
Body shower:
Stand pipe made of stainless steel,
powder-coated in green.
Shower arm made of brass, powder-coated in green.
Stainless steel ball valve.
High-performance shower head made of
chemical-resistant plastic, self-draining.
Including emergency sign (pictogram).
Eye wash:
Stainless steel ball valve, not self-closing.
Collecting basin made of stainless steel,
powder-coated in green.
Push plate made of steel, powder-coated in green.
Water-bearing parts made of brass.
Including emergency sign (pictogram).
Water flow rate body shower:
50 l/min. at 1.5 - 3 bar flow pressure,
incl. automatic flow regulation.
Required water connection: 1¼'' external thread.
Water flow rate eye wash:
16 l/min. at 1.5 - 5 bar flow pressure,
incl. automatic flow regulation.
Tested acc. to BGI/GUV-I 850-0, DIN 1988,
DIN EN 1717, ANSI Z358.1-2004, DIN EN 15154-1,
DIN EN 15154-2, tested and certified acc. to
DIN-DVGW.
Stand pipe made of stainless steel,
powder-coated in green.
Shower arm made of brass, powder-coated in green.
Stainless steel ball valve.
High-performance shower head made of
chemical-resistant plastic, self-draining.
Including emergency sign (pictogram).
Eye wash:
Stainless steel ball valve, not self-closing.
Collecting basin made of stainless steel,
powder-coated in green.
Push plate made of steel, powder-coated in green.
Water-bearing parts made of brass.
Including emergency sign (pictogram).
Water flow rate body shower:
50 l/min. at 1.5 - 3 bar flow pressure,
incl. automatic flow regulation.
Required water connection: 1¼'' external thread.
Water flow rate eye wash:
16 l/min. at 1.5 - 5 bar flow pressure,
incl. automatic flow regulation.
Tested acc. to BGI/GUV-I 850-0, DIN 1988,
DIN EN 1717, ANSI Z358.1-2004, DIN EN 15154-1,
DIN EN 15154-2, tested and certified acc. to
DIN-DVGW.
Technical details
Product range
Safety equipment
HW-category
Emergency products
Outer width approx.
2300 mm
Outer depth approx.
655 mm
Weight (product) approx.
15 kg
