Article number: 2.00.397-1

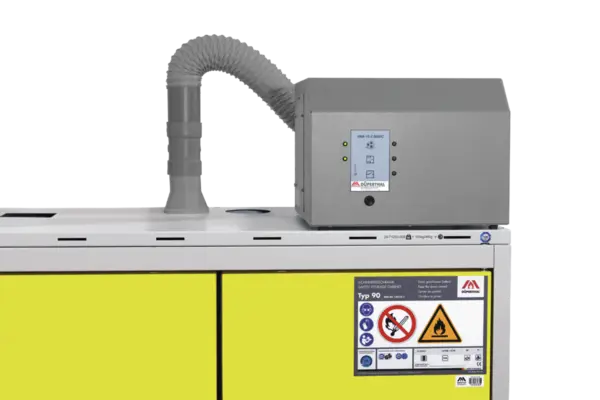

Filter unit with ventilator and exhaust air monitoring unit
Item is available for order
ATEX-compliant CE Ex II (3) G [n T4],
zone 2 in the air flow and
low Voltage Directive 2006/95/EC.
PTB-Nr. 14 ATEX D027 and
Consisting of:
Casing made of sheet steel in silver pearl glimmer
Integrated LED error display.
Ready to plug in connection for the 230V / 50 Hz
power supply via CEE 7/7 plug.
Integrated ventilator.
Exchangeable activated carbon filter
(2 kg filling).
Exchangeable particlel filter acc. to DIN EN 779.
Filter capacity (activated carbon): 30% of filling
for all substances on the included
hazardous substances list.
Optical and acoustic warning in event of errors.
One floating contact (max. 24V/2A).
Functions:
Monitoring of the air flow.
Monitoring of the filter exchange interval
(electronically coded).
Low noise ventilation
zone 2 in the air flow and
low Voltage Directive 2006/95/EC.
PTB-Nr. 14 ATEX D027 and
Consisting of:
Casing made of sheet steel in silver pearl glimmer
Integrated LED error display.
Ready to plug in connection for the 230V / 50 Hz
power supply via CEE 7/7 plug.
Integrated ventilator.
Exchangeable activated carbon filter
(2 kg filling).
Exchangeable particlel filter acc. to DIN EN 779.
Filter capacity (activated carbon): 30% of filling
for all substances on the included
hazardous substances list.
Optical and acoustic warning in event of errors.
One floating contact (max. 24V/2A).
Functions:
Monitoring of the air flow.
Monitoring of the filter exchange interval
(electronically coded).
Low noise ventilation
Technical details
Product range
Safety equipment
Retail category
Ventilation systems
Outer width
460 mm
Outer depth
415 mm
Outer height
310 mm
Weight (product)
18 kg
