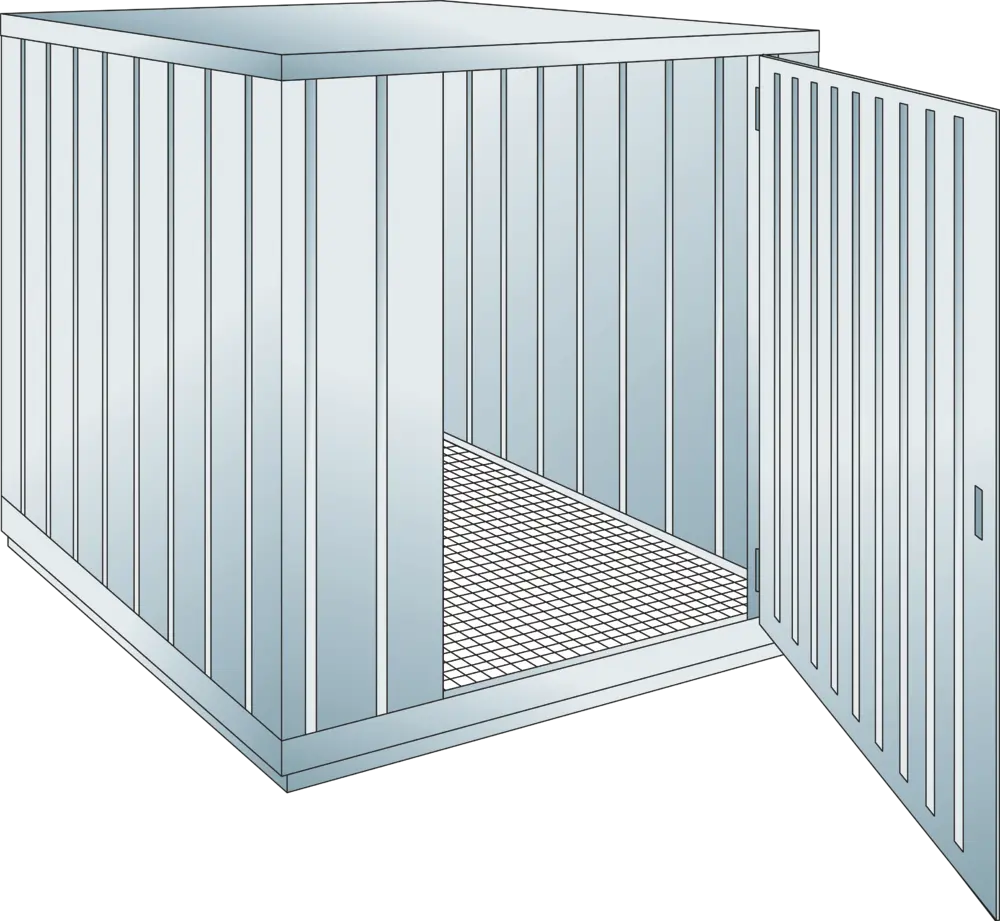

Safety storage container collection volume 630 l
Dimensions: 1950 x 2350 x 2340 (LxWXH in mm)
Capacity: 6300 l
Approval for storage of water polluting liquids
WGK 1 - 3, flammable liquids, F+, F outdoors or in
building in accordance with the specific fire
protection regulations.
Construction of container:
- Wall and ceiling elements made from galvanised
trapezoidal sections, floor sections made from
sheet steel.
- 1 leaf, galvanised door,
1294 mm wide and 1996 mm high,
the door is hung on the right,
mounted on the longitudinal side
(optionally on the longitudinal or narrow side).
- Single-point locking
- Mortise lock with door handles and
security lock with 2 keys.
- The accessible roof is designed for 125 kg/m2
snow load.
- Drainage through inner-lying gutters.
- Bottom tray made from 3 mm thick, galvanised
sheet steel, welded liquid-tight.
- Standing level made from galvanised, removable
gratings, load 1000 kg/m2.
Testing:
General national technical approval Z-38.5-94 of
the Deutsche Institut für Bautechnik (DIBt) Berlin
