Article number: 69-200667-070

BATTERY station M

Google reviews for dueperthal.com

Item is available for order

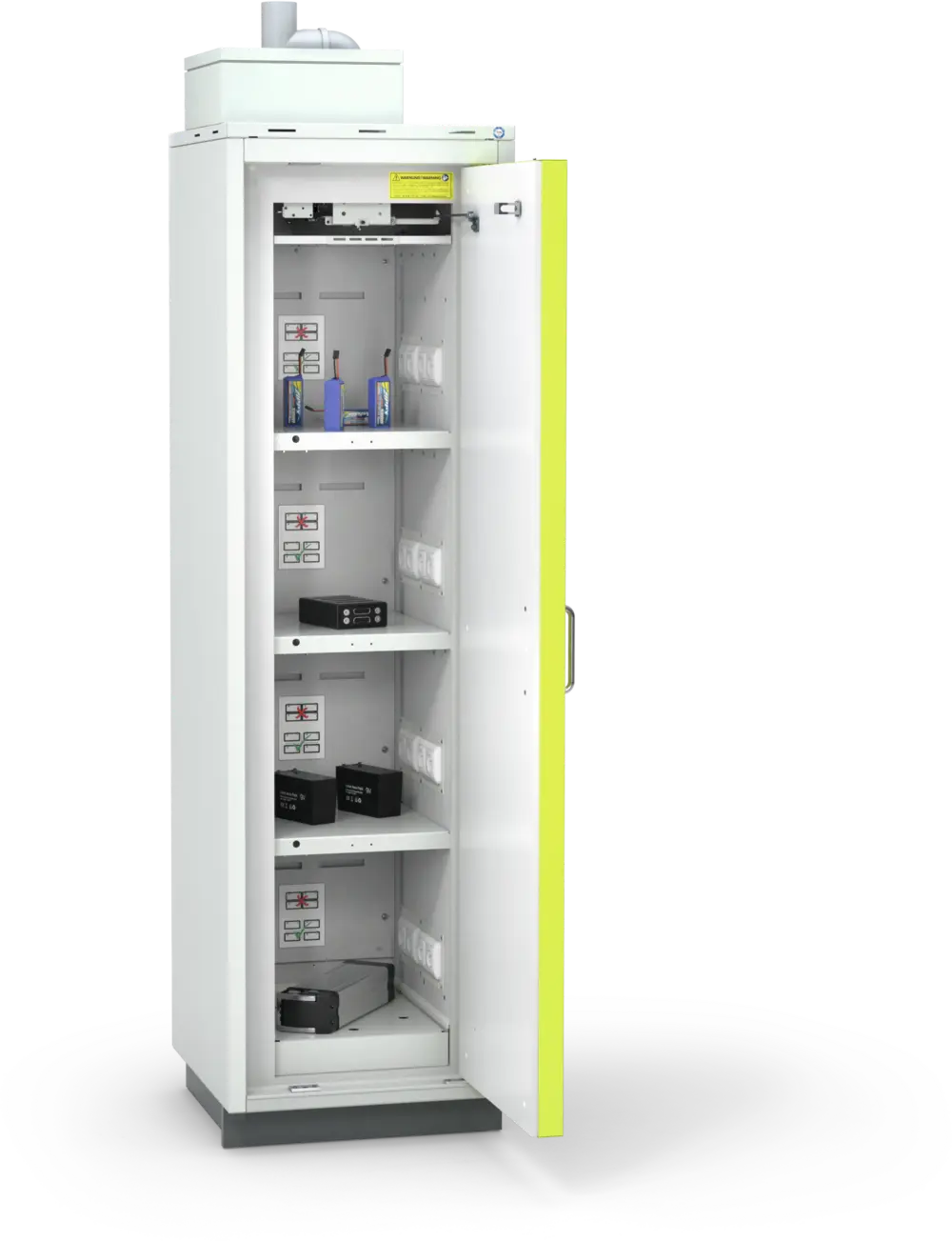

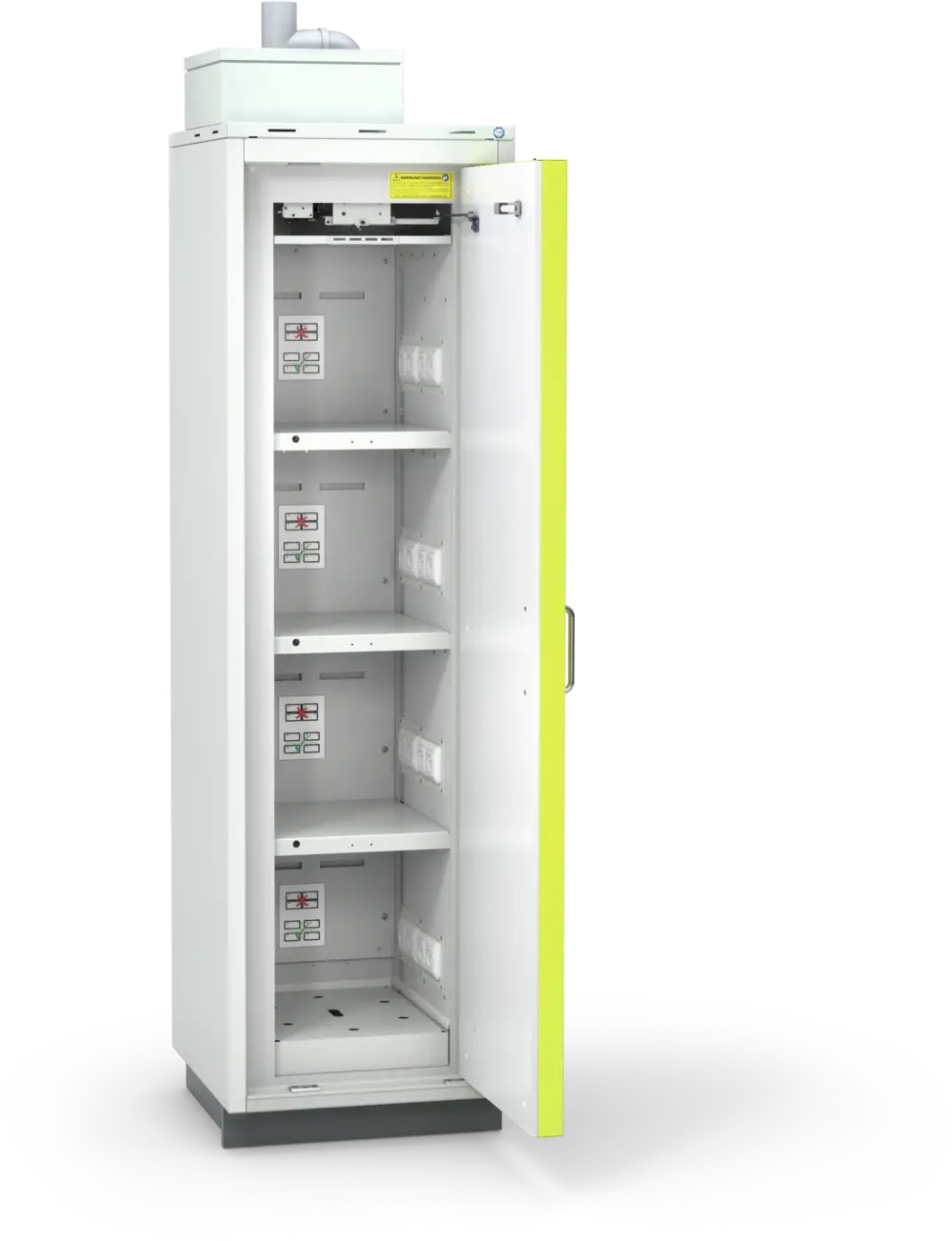

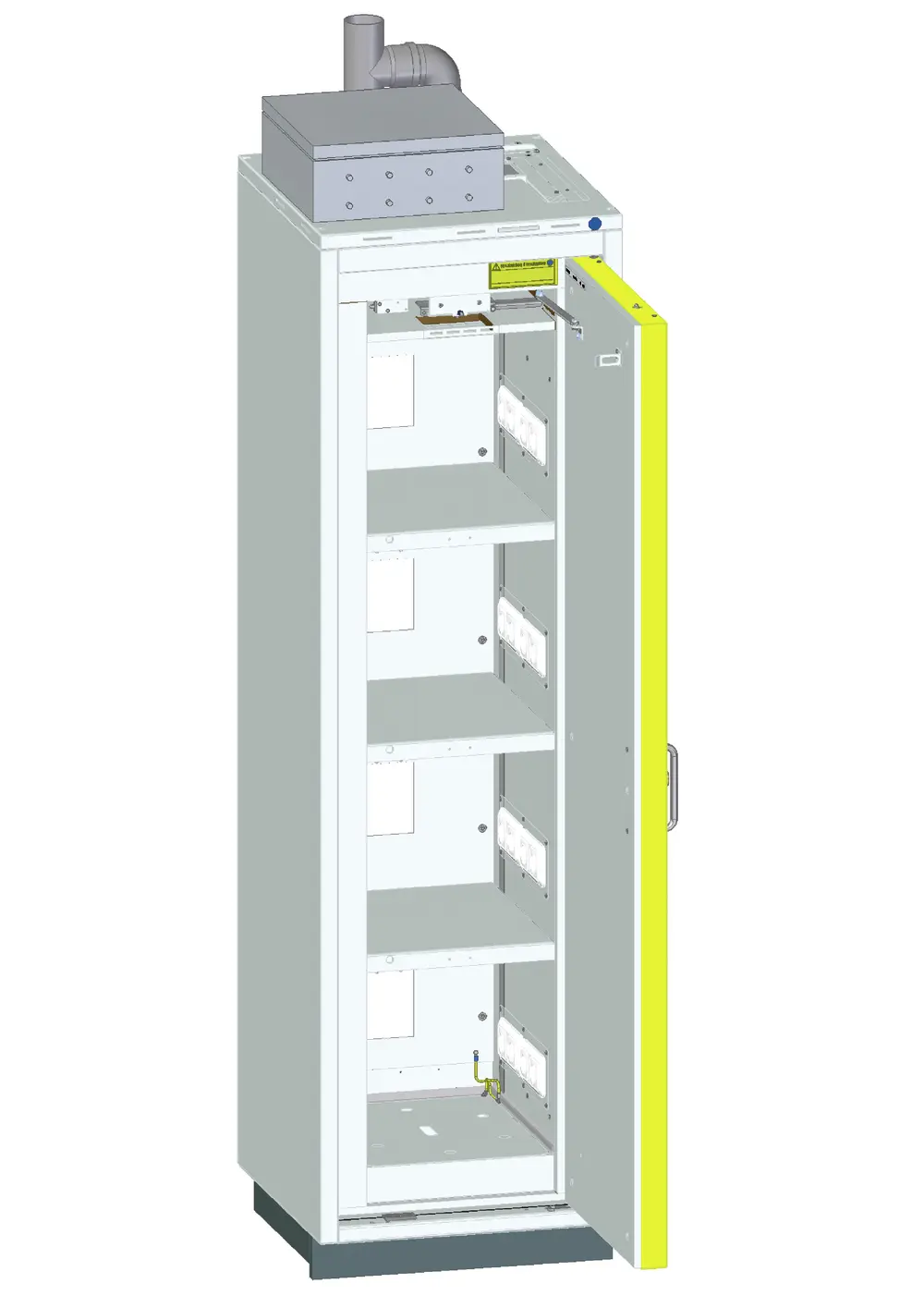

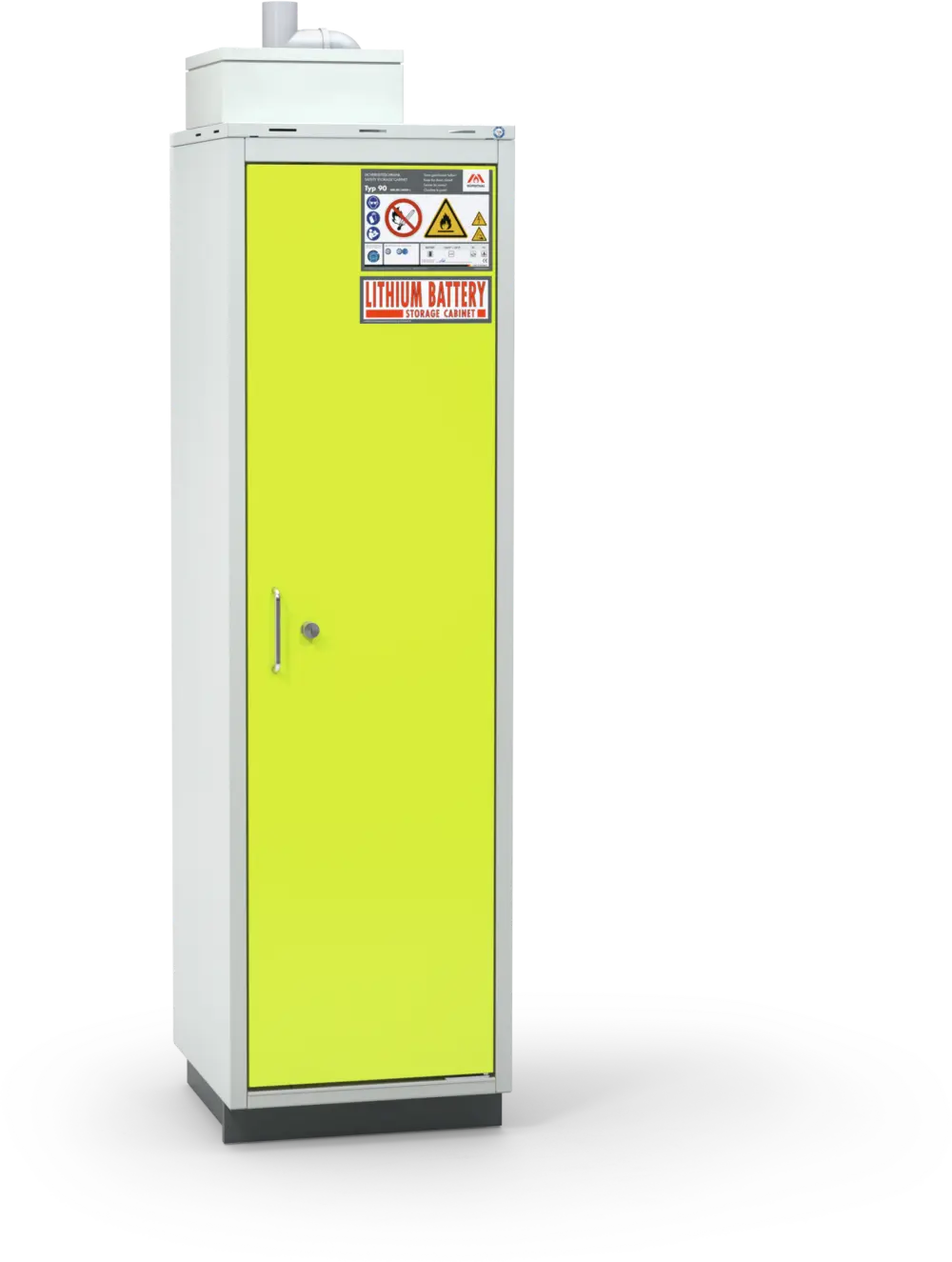

The BATTERY line safety storage cabinets are specially designed for safe storage and charging of lithium-ion batteries. With its Type 90 classification and explosive burning of batteries in the interior tested by the independent Fraunhofer Institute, the BATTERY line provides double fire protection. all safety-related components are not subjected to day-to-day dynamic loads and are thus free of attrition and mechanical wear.

Safety
In case of fire - inside or outside - a thermocouple automatically initiates the uninterrupted closing of the doors.
Tested backdraft protection (smoke gas explosion).
In the event of a fire inside the cabinet, the doors are automatically closed and locked to prevent a backdrafts (smoke gas explosion).
Safe charging
Fuse protected power supply for chargers is provided and ready to plug in.
Ready to plug in
Supplied ready to plug in with reverse polarity protected plug including fuse box with residual current circuit breaker - fused with residual current circuit breaker for disconnection from the power supply in the event of a fault.
Alerts via e-mail / SMS with DÜPERTHAL connect
The monitoring of the backdraft function and the temperatures can be done optionally online incl. alerts via e-mail / SMS or via SMS alert with SMS module via 4G LTE-M network.

Door colors

RAL 7035

PANTONE 389 C

Body colors

RAL 7035

PANTONE 389 C

To comparison table Download datasheet Configure and request

Specifications

Protected power supply for chargers, plug-and-play

Automatic door closure in case of fire

Backdraft protection - protection against smoke gas explosions

Storing and charging batteries

Fire containment without extinguishing agents

Thermally insulated shelves

Type 90 - 90-minute fire protection

Impact protection through recessed base

Technical details

Product range

Safety storage cabinet

Product category

Type 90 - lithium-ion batteries

Line

BATTERY

Version

station

Size

Type

Storage type

passive storage

Functionality

Charging

Earthing connection

Yes

Connection socket

Yes

TÜV Süd certificate no.

Z1 012906 0516

TÜV-Süd certificate type

Tested safety

Z2 012906 0513

DIN EN 14470-1

Yes

DIN EN 16121/16122

Yes

DIN EN IEC 61439-2

Yes

Outer width

594 mm

Outer depth

612 mm

Outer height

2091 mm

Max. load bearing capacity per storage area

75 kg

Max. load

360 kg

Max. total weight

680 kg

Max. volume of single container

10 L

Collection volume

11 L

Electrical sockets

16 Stk

Country code

Type F: CEE 7/3

Max. capacity of li-ion cell

54 Ah

Power supply

230V - 50Hz - IEC 61439

Weight (product)

320 kg

Connector Type

CEE P+N+E, 6h, blue

Material of cabinet cladding

Sheet steel

Cabinet colour

RAL 7035

Material of inner lining

Decor panels

Colour of inner lining

RAL 7035

Base

Set-back

Base height

95 mm

Base colour

RAL 7015

No. of doors

1 Stk

Kind of door

Wing door

Material of door cover

Sheet steel

Door colour

PANTONE 389 C

Door hinge

Right

Door operation

Classical

Door technology

Classical

Door handle

Bow handle matt nickel

Lock

Cylinder lock

Locking system

Permanent

Locking points

2-point

Backdraft lock

yes

Material of interior fittings

Sheet steel

Colour of interior fittings

RAL 7035

Bottom tray

Fixed

Bottom tray insert

Perforated sheet insert

Storage shelf

Yes

Storage levels

4 Stk

Storage areas

4 Stk

min. setting height

378 mm

Accessories

Yes

Number of penetrations

1 Stk

Load adapter

Yes

Configure and request

Certifications and DIN standards

Downloads

Technical datasheet

Abstract Report Fraunhofer ICT - Study on the Effect of a Propagation Inside a Safety Storage Cabinet

Dimension sheet load adapter

High Quality Certificate

Type certificate load adapter

Operating instructions load adapter

Operating instructions BATTERY station - GB

Type certificate (station)

Declaration of Conformity (BATTERY station)

Operating instructions BATTERY station - EU

Dimension sheet BATTERY station

DÜPERTHAL connect – Intelligent storage management for hazardous resources.

DÜPERTHAL connect is an intelligent solution for managing hazardous material storage. It enables digital networking and monitoring of hazardous material storage via smartphone, tablet, or desktop PC. DÜPERTHAL connect helps companies optimize processes, increase safety, and improve efficiency in handling hazardous substances.

Discover now

Comparison table


Model size	M	XL
Model type	station	station
External width	594 mm	1194 mm
External depth	612 mm	612 mm
External height	2091 mm	2091 mm
