CLASSIC pure XL - 29-201267-006 - Product Detail
Article number: 29-201267-006

CLASSIC pure XL

Google reviews for dueperthal.com
Item is available for order

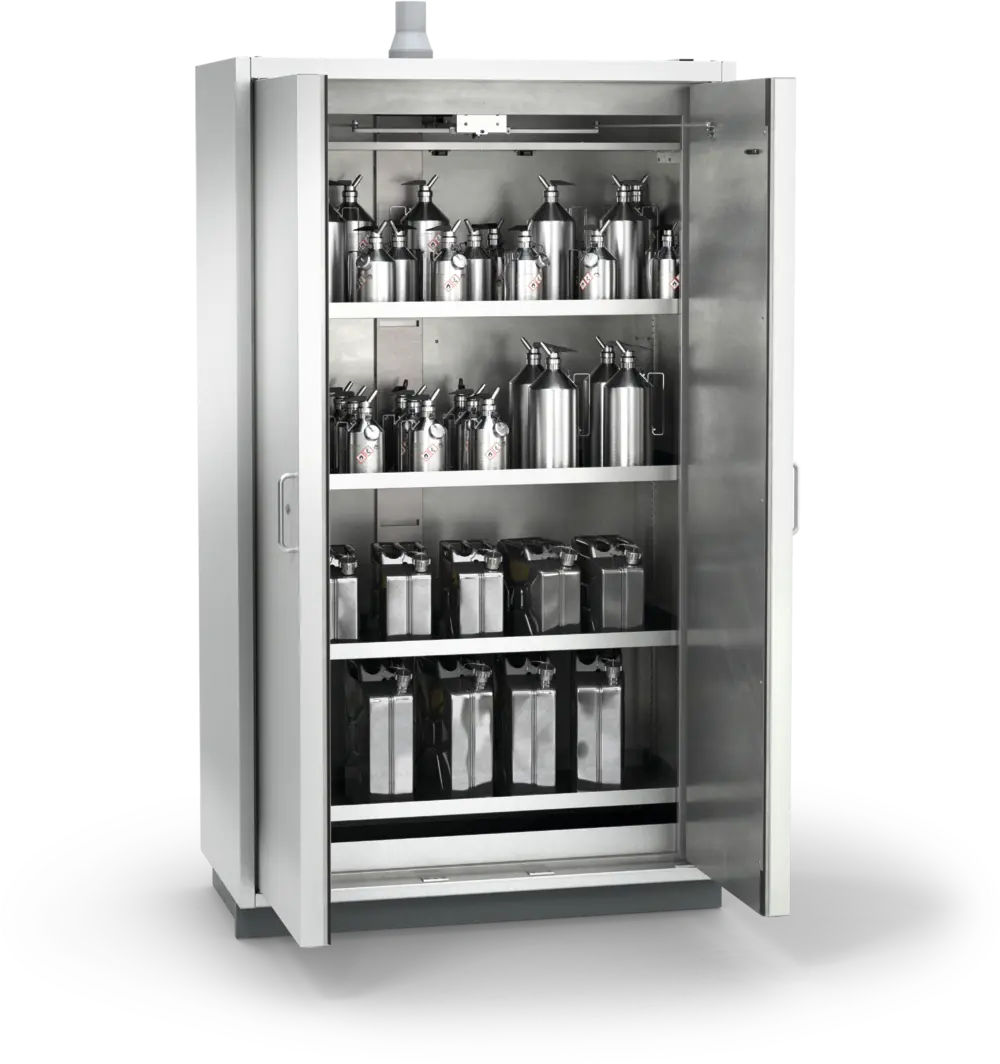

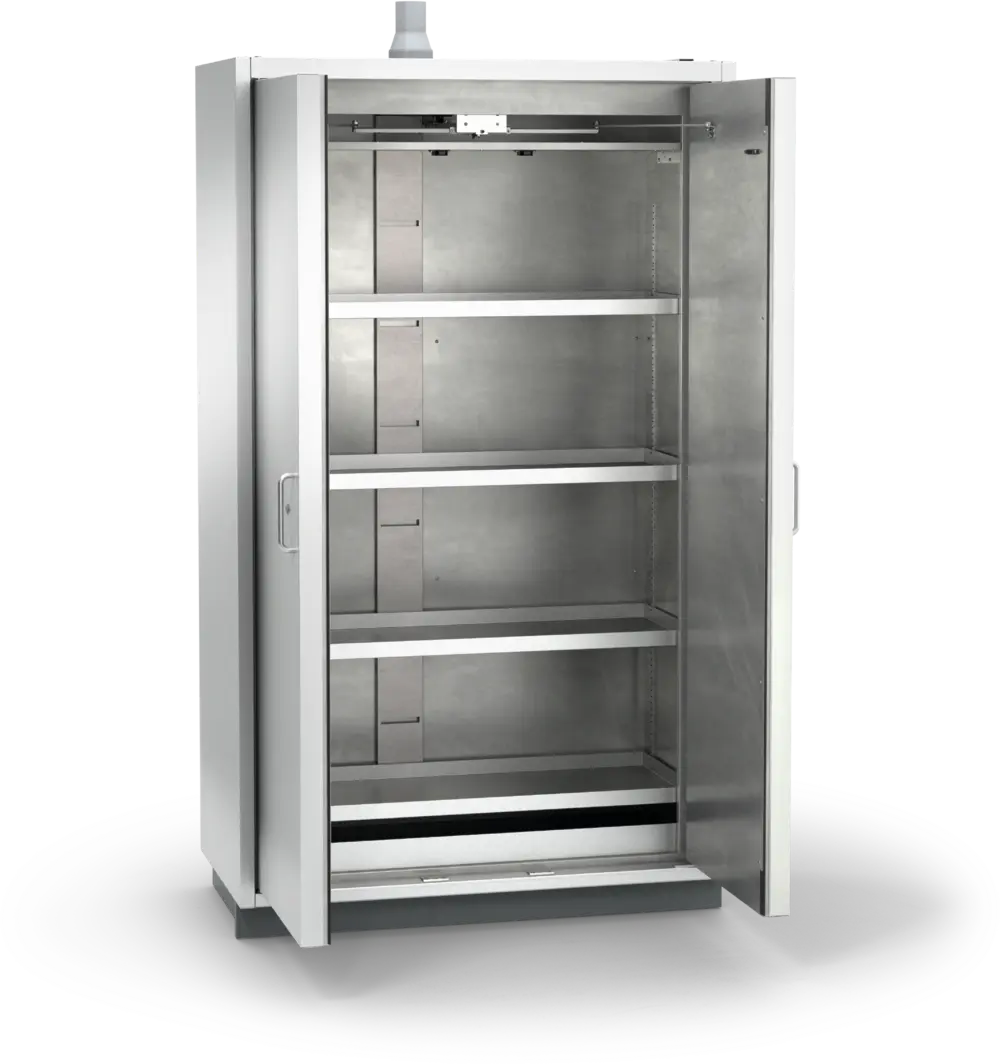

Safety storage cabinet with wing door for the storage of hazardous substances in clean rooms and working areas in accordance with TRGS 510. Suitable for installation in Class 5 clean rooms according to DIN EN ISO 14644-1 (M 3.5 = 100 according to US Fed. Std. 209e).

  • Health
    Ventilation on each cabinet level provides optimised air exchange.

  • Safety
    In case of fire, a thermocouple automatically initiates the uninterrupted closing of the doors.

  • Working safety
    Equipotential bonding saddles as a standard on the cabinet help to prevent spark formation.
Door colors
RAL 9006
Body colors
RAL 9006

Specifications

Automatic door closure in case of fire
Automatic door closure in case of fire
Interior fittings conductive and connected to the body
Interior fittings conductive and connected to the body
Optimal space utilization with height-adjustable shelves
Optimal space utilization with height-adjustable shelves
Type 90 - 90-minute fire protection
Type 90 - 90-minute fire protection
Suitable for clean rooms
Suitable for clean rooms
Smooth wing door technology
Smooth wing door technology
Impact protection through recessed base
Impact protection through recessed base
Efficient ventilation in every cabinet level
Efficient ventilation in every cabinet level

Technical details

Product range
Safety storage cabinet
Product category
for clean rooms
Line
CLASSIC
Version
pure
Size
XL
Type
90
Storage type
passive storage
Functionality
Storage
Earthing connection
Yes
Connection socket
Yes
TÜV Süd certificate no.
Z1A 012906 0520
TÜV-Süd certificate type
GS
Z2 012906 0513
DIN EN 14470-1
Yes
DIN EN 16121/16122
Yes
Outer width
1194 mm
Outer depth
612 mm
Outer height
2045 mm
Max. load bearing capacity per storage area
75 kg
Max. load
360 kg
Max. total weight
815 kg
Max. volume of single container
30 L
Collection volume
33 L
Weight (product)
530 kg
Material of cabinet cladding
Sheet steel
Cabinet colour
RAL 9006
Material of inner lining
Stainless steel V2A
Base
Classical
Base height
89 mm
Base colour
RAL 7015
No. of doors
2 Stk
Kind of door
Wing door
Material of door cover
Sheet steel
Door colour
RAL 9006
Door operation
Classical
Door technology
Classical
Door handle
Bow handle matt nickel
Lock
Cylinder lock
Locking system
Open
Locking points
1-point
Material of interior fittings
Stainless steel V2A
Bottom tray
Fixed
Storage shelf
Yes
Storage levels
4 Stk
Storage areas
4 Stk
setting height
394 mm
CLASSIC pure XL

Certifications and DIN standards

DIN EN 14470-1
DIN EN 16121/16122
HQ
TÜV-GS
DÜPERTHAL connect – Intelligent storage management for hazardous resources.

DÜPERTHAL connect – Intelligent storage management for hazardous resources.

DÜPERTHAL connect is an intelligent solution for managing hazardous material storage. It enables digital networking and monitoring of hazardous material storage via smartphone, tablet, or desktop PC. DÜPERTHAL connect helps companies optimize processes, increase safety, and improve efficiency in handling hazardous substances.

Comparison table

CLASSIC pure XL CLASSIC pure M
Model size XL M
Model type pure pure
External width 1194 mm 594 mm
External depth 612 mm 612 mm
External height 2045 mm 2045 mm
To the product
