Article number: 59-200975-017

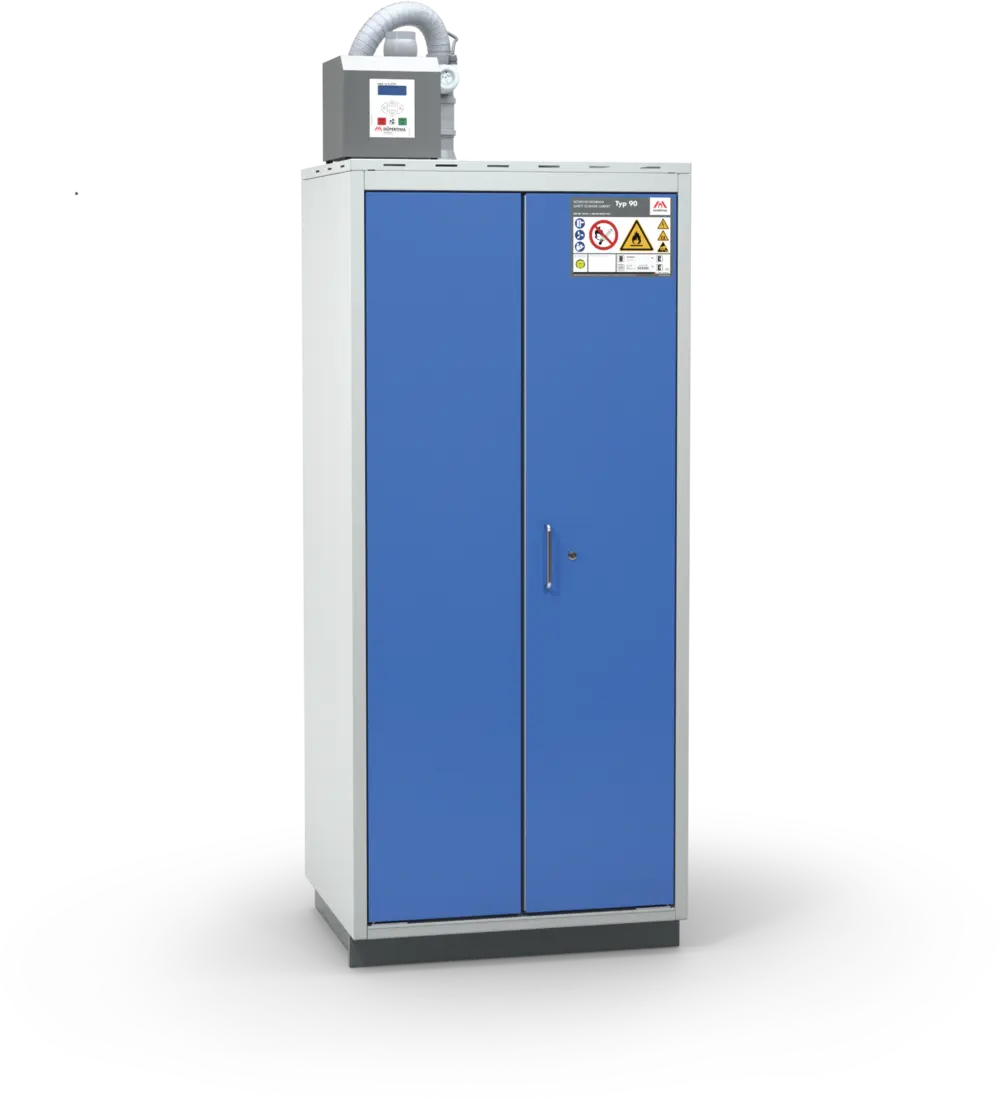

COMPLEX LL

Google reviews for dueperthal.com
Item is available for order

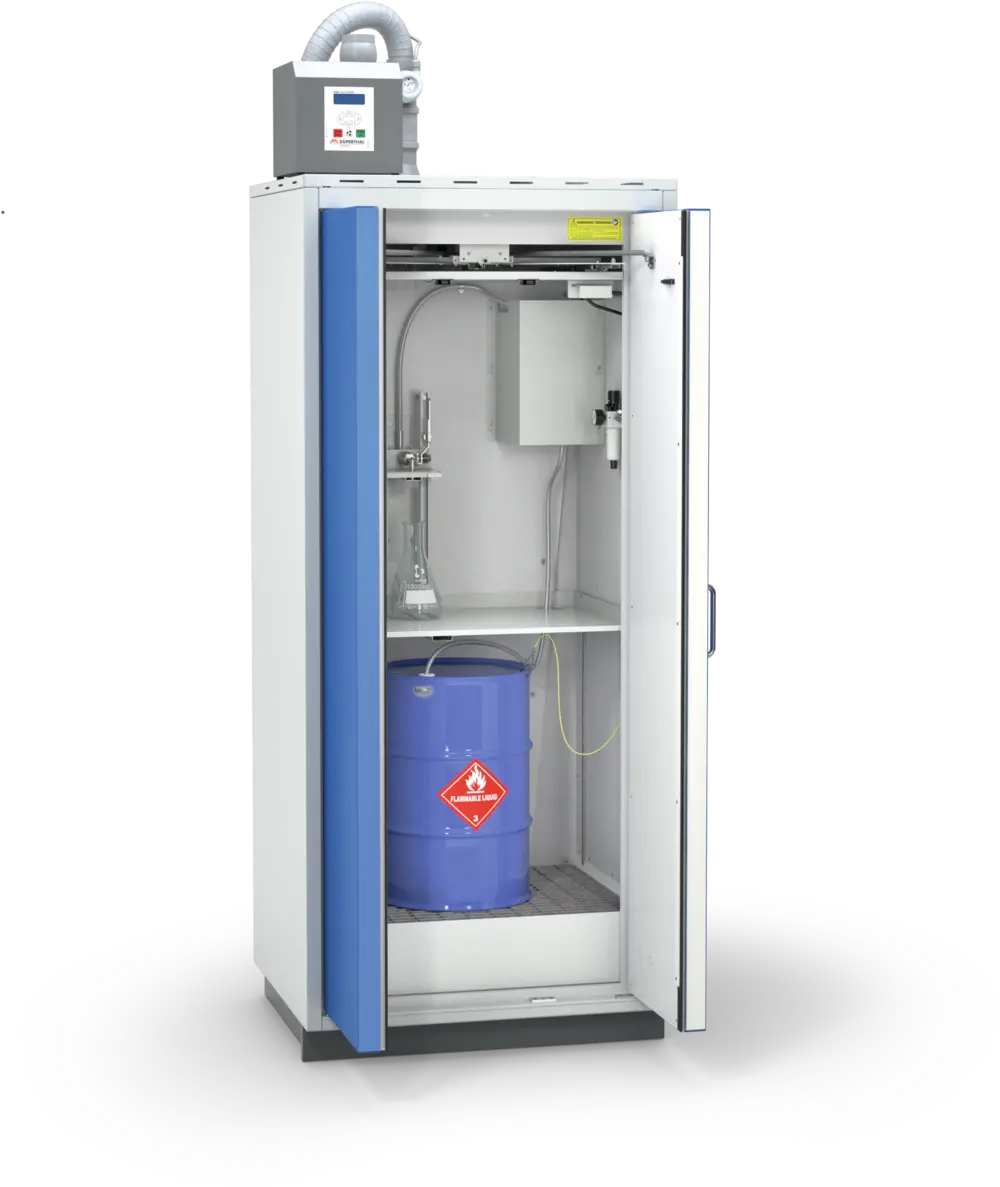

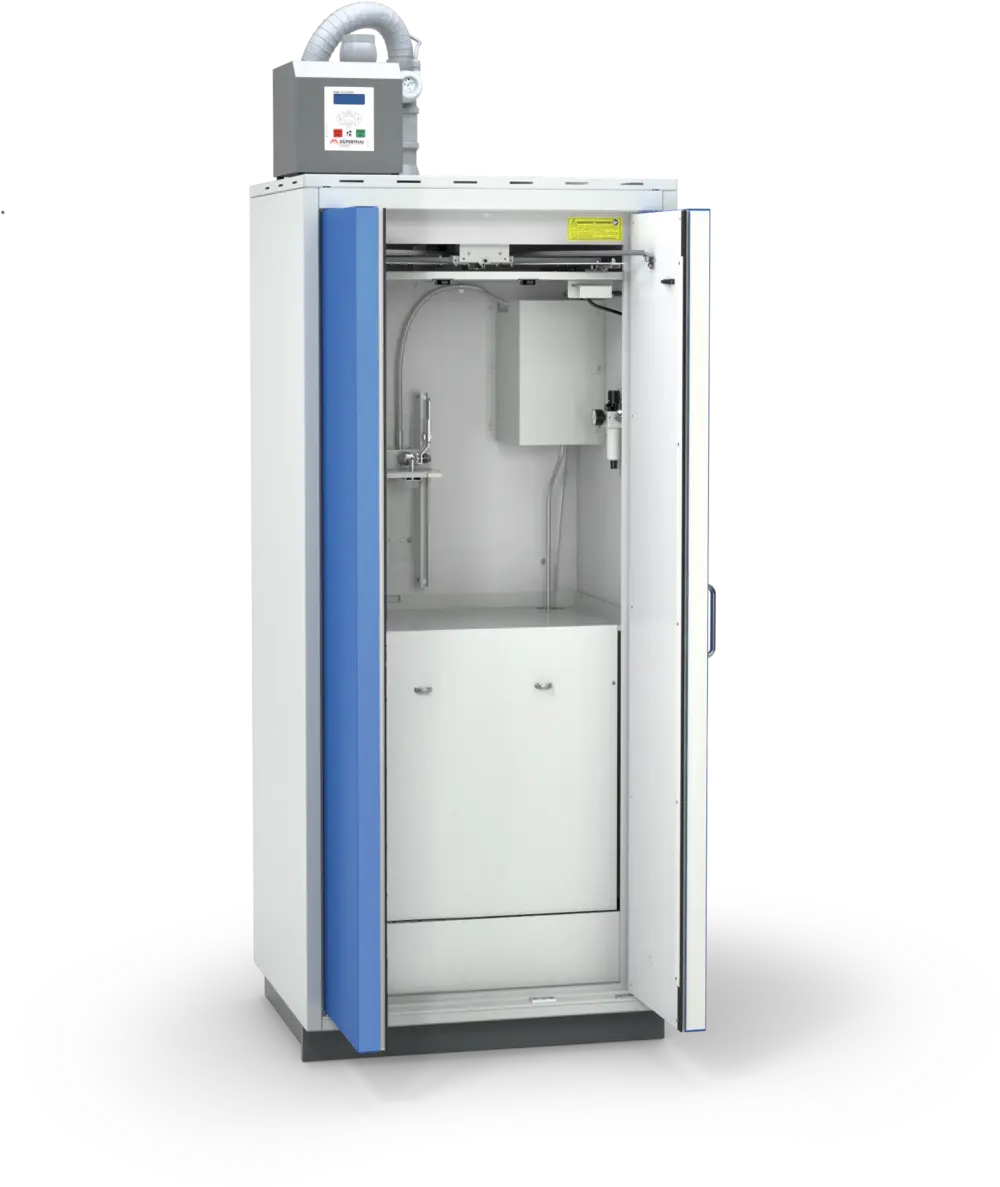

The COMPLEX line Type 90 from DÜPERTHAL is a certified system solution specially designed for the removal of media from drums into smaller containers. The easy startup due to ready to plug-in, pre-assembled connections enables flexible work processes and more efficient organisation of the internal value chain.

  • Technical ventilation
    Object and air curtain extraction directly at the tap minimize the explosive atmosphere when filling.

  • Safety
    Safe media extraction from canisters and drums into smaller containers in accordance with TRGS 509 (active storage).

  • Working safety
    Conductive powder coating as a standard and integrated earthing system according to TRGS 727.
  • Tested and TÜV-certified complete system for supply acc. to TRGS 509.
Door colors
RAL 5010
RAL 7035
Body colors
RAL 5010
RAL 7035

Specifications

Conductive powder coating and continuous grounding system
Conductive powder coating and continuous grounding system
Media extraction from canisters and small drums
Media extraction from canisters and small drums
Object extraction during filling
Object extraction during filling
Potential equalization tabs to prevent sparking
Potential equalization tabs to prevent sparking
Standard integrated exhaust monitoring unit
Standard integrated exhaust monitoring unit
Type 90 - 90-minute fire protection
Type 90 - 90-minute fire protection
Smooth wing door technology
Smooth wing door technology
Impact protection through recessed base
Impact protection through recessed base

Technical details

Product range
Safety storage cabinet
Product category
Type 90 - flammable liquids
Line
COMPLEX
Size
LL
Type
90
Storage type
active storage
Functionality
Filling
Earthing connection
Yes
Connection socket
Yes
DIN EN 14470-1
Yes
DIN EN 16121/16122
Yes
Outer width
894 mm
Outer depth
747 mm
Outer height
2045 mm
Max. load bearing capacity per storage area
250 kg
Max. load
360 kg
Max. total weight
860 kg
Max. volume of single container
60 L
Collection volume
66 L
Compressed air supply
Yes
Weight (product)
442 kg
Potential-free contact
Yes
Material of cabinet cladding
Sheet steel
Cabinet colour
electrically conductive gray
Material of inner lining
Sheet steel
Colour of inner lining
electrically conductive gray
Base
Classical
Base height
89 mm
Base colour
RAL 7015
No. of doors
2 Stk
Kind of door
Wing door
Material of door cover
Sheet steel
Door colour
electrically conductive blue
Door operation
One-hand
Door technology
Classical
Door handle
Bow handle matt nickel
Lock
Cylinder lock
Locking system
Open
Locking points
1-point
Material of interior fittings
Sheet steel
Colour of interior fittings
electrically conductive gray
Bottom tray
Fixed
Bottom tray insert
Grating
Storage levels
1 Stk
Storage areas
1 Stk
min. setting height
668 mm
Setting height filling container
190 - 380 mm
Accessories
Yes
Number of filling points
1 Stk
Load adapter
Yes
Exhaust air monitoring
Yes with ventilator
COMPLEX LL

Certifications and DIN standards

DIN EN 14470-1
DIN EN 16121/16122
DÜPERTHAL connect – Intelligent storage management for hazardous resources.

DÜPERTHAL connect – Intelligent storage management for hazardous resources.

DÜPERTHAL connect is an intelligent solution for managing hazardous material storage. It enables digital networking and monitoring of hazardous material storage via smartphone, tablet, or desktop PC. DÜPERTHAL connect helps companies optimize processes, increase safety, and improve efficiency in handling hazardous substances.

Comparison table

COMPLEX LL COMPLEX XXL
Model size LL XXL
External width 894 mm 1645 mm
External depth 747 mm 747 mm
External height 2045 mm 2045 mm
