Article number: 89-200977-041

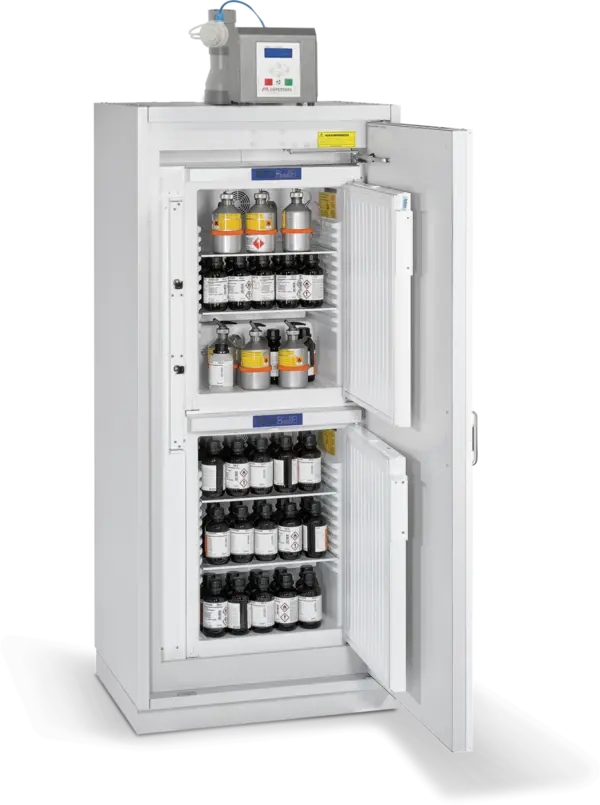

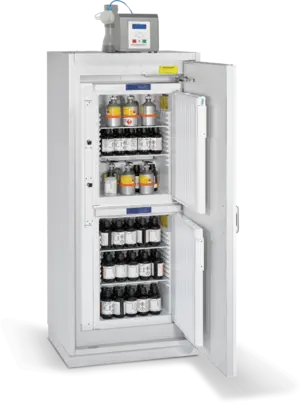

COOL dual XL

Google reviews for dueperthal.com

Item is available for order

Flammable liquids are cooled and safely stored with the COOL line. Different temperature requirements for flammable liquids can easily be stored in the COOL dual. Here, the temperature can be controlled separately for each of the two cooling compartments between +3 °C (37.4 °F) and +16 °C (60.8 °F).

Maximum fire protection
Maximum safety with Type 90 technology and cooled interior.
Safety
In case of fire, a thermocouple automatically initiates the uninterrupted closing of the doors.
Working safety
Equipotential bonding saddles as a standard on the cabinet help to prevent spark formation.

Door colors

RAL 7035

RAL 9010

Body colors

RAL 7035

RAL 9016

To comparison table Download datasheet Configure and request

Specifications

Automatic door closure in case of fire

Cooled storage

Type 90 - 90-minute fire protection

Smooth wing door technology

Separate cooling rooms

Stepless temperature control

Impact protection through recessed base

Technical details

Product range

Safety storage cabinet

Product category

Type 90 - cooled storage

Line

COOL

Version

dual

Size

Type

Storage type

passive storage

Functionality

Storage

Earthing connection

Yes

Connection socket

Yes

TÜV Süd certificate no.

Z1A 012906 0520

TÜV-Süd certificate type

Z2 012906 0513

DIN EN 14470-1

Yes

DIN EN 16121/16122

Yes

Outer width

894 mm

Outer depth

747 mm

Outer height

2045 mm

Max. load bearing capacity per storage area

40 kg

Max. load

240 kg

Max. total weight

715 kg

Max. volume of single container

5 L

Collection volume

5,5 L

Power supply

230V - 50Hz - IEC 61439

Weight (product)

499 kg

+3°C - +16°C

Connector Type

Type E+F: CEE 7/7

Potential-free contact

Yes

Material of cabinet cladding

Sheet steel

Cabinet colour

RAL 7035

Material of inner lining

Decor panels

Colour of inner lining

RAL 7035

Base

Classical

Base height

89 mm

Base colour

RAL 7015

No. of doors

1 Stk

Kind of door

Wing door

Material of door cover

Sheet steel

Door colour

RAL 9016

Door hinge

Right

Door operation

Classical

Door technology

Classical

Door handle

Bow handle matt nickel

Lock

Cylinder lock

Locking system

Open

Locking points

1-point

Material of interior fittings

Sheet steel

Colour of interior fittings

RAL 9016

Bottom tray

Fixed

Bottom tray insert

Perforated sheet insert

Storage shelf

Yes

Storage levels

8 Stk

Storage areas

8 Stk

min. setting height

628 mm

Accessories

Yes

Number of penetrations

1 Stk

Load adapter

Yes

Exhaust air monitoring

Yes

Configure and request

Certifications and DIN standards

Downloads

Technical datasheet

Approved disinfectants for Liebherr laboratory and medical coolers

User's manual Exhaust Airflow Unit with Fan 2.00.320-1 a. 2.00.320C-1 (U=230V)

User's manual Exhaust airflow unit without fan 2.00.360 u. 2.00.360C (U=230V)

Dimension sheet load adapter

Operating instructions load adapter

Declaration of conformity LKUexv 1610 Liebherr

Operating Instruction Liebherr LKexv 1610

Operating instructions COOL XL

Type certificate (GS)

Declaration of Conformity COOL XL

Dimensions sheet COOL dual XL

DÜPERTHAL connect – Intelligent storage management for hazardous resources.

DÜPERTHAL connect is an intelligent solution for managing hazardous material storage. It enables digital networking and monitoring of hazardous material storage via smartphone, tablet, or desktop PC. DÜPERTHAL connect helps companies optimize processes, increase safety, and improve efficiency in handling hazardous substances.

Discover now

Comparison table


Model size	XL	XL
Model type	dual	dual
External width	894 mm	894 mm
External depth	747 mm	747 mm
External height	2045 mm	2045 mm
		To the product

Matching products

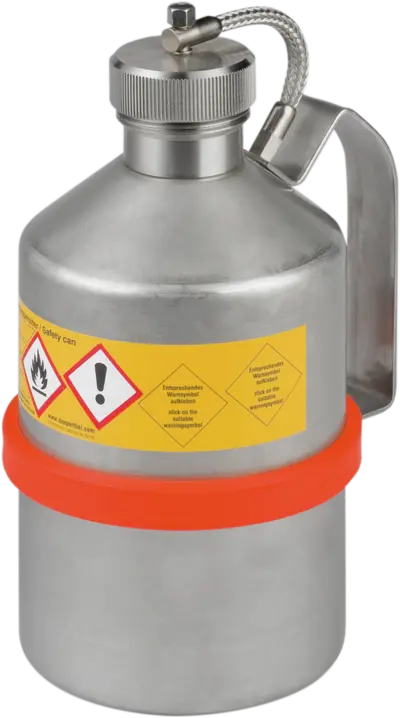

Stainless steel transport can capacity 1 l
