Article number: 70-201040-003

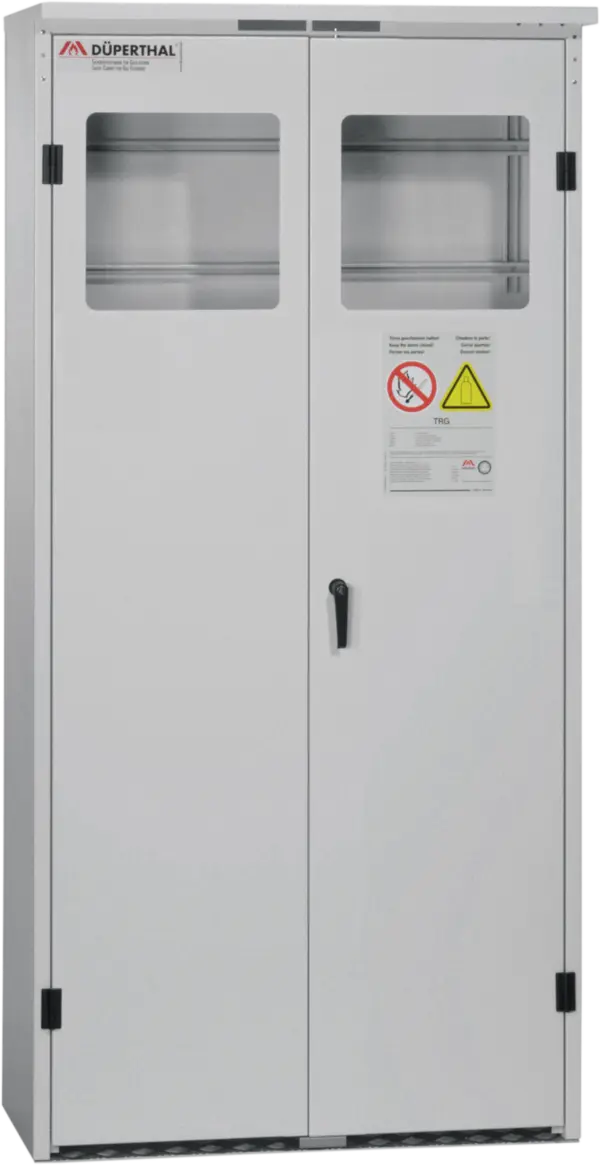

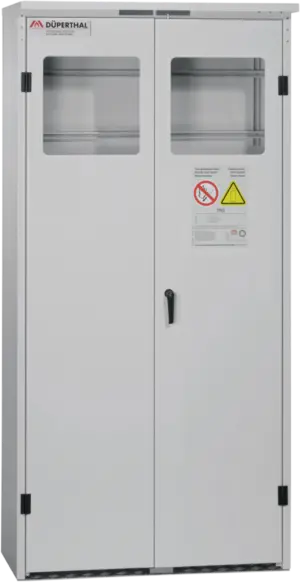

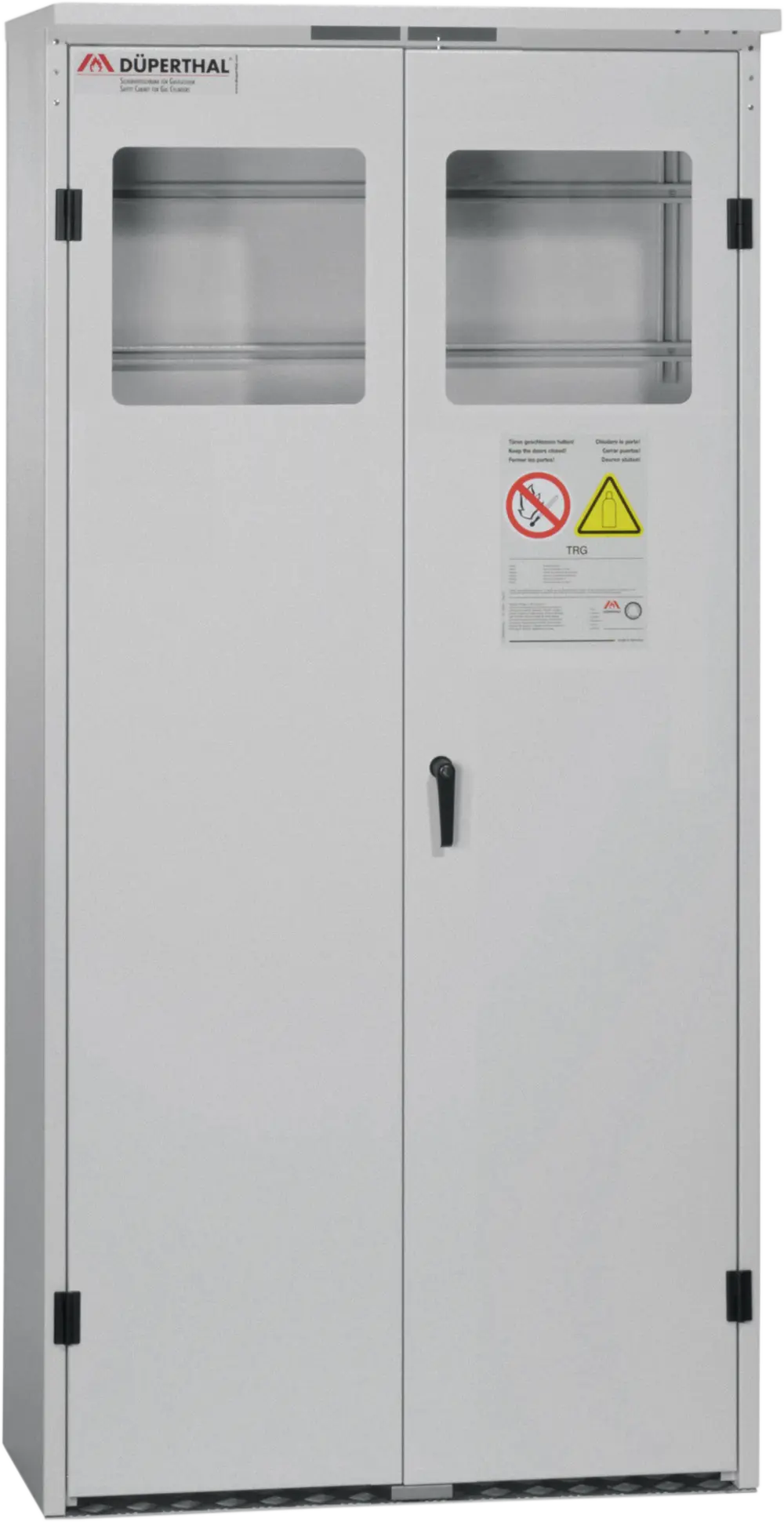

DEPOT L

Google reviews for dueperthal.com

Item is available for order

No safety distance around the gas cylinder depot necessary.
Good corrosion resistance with polyester powder coating RAL 9002 grey white on galvanised base material.
Robust construction made of sheet steel, material thickness 1.5 mm (0.6 inch).
3-point locking system with door handle with security cylinder lock at an ergonomically favourable height.
Earthing possibility on the ceiling.
Chequer plate floor 3 mm (0.12 inch), including corrugation 4.5 mm (1.77 inch).
For each cylinder rack space, there are 2 penetrations in the ceiling, each Ø 22 mm (0.87 inch), for 13.5 (5,3 inch) PG fittings (closed with plastic plugs).
2 horizontal installation rails for mounting fittings.
One cylinder holder with one retaining belt per standing space.
Prepared for ground fixing.
Natural ventilation in accordance with TRGS.
Labelling with warning symbol W19.

Door colors

silber

Body colors

silber

To comparison table Download datasheet Configure and request

Specifications

Pass-throughs for PG fittings in the cabinet ceiling

Optional design with inspection window

Access protection via cylinder lock with 3-point locking system

Smooth wing door technology

Technical details

Product range

Safety storage cabinet

Product category

Gas cylinder - outside storage

Line

DEPOT

Size

Functionality

Storage

Earthing connection

Yes

Outer width

954 mm

Outer depth

400 mm

Outer height

2053 mm

Max. load bearing capacity per storage area

150 kg

Number of gas cylinder retaining belts

3 Stk

Weight (product)

103 kg

Material of cabinet cladding

Sheet steel

Cabinet colour

RAL 9002

Material of inner lining

Sheet steel

Colour of inner lining

RAL 9002

No. of doors

2 Stk

Kind of door

Wing door

Material of door cover

Sheet steel

Door colour

RAL 9002

Door operation

Classical

Door technology

Classical

Door handle

Lever handle black PA

Lock

Cylinder lock

Locking system

Open

Locking points

3-point

Material of interior fittings

Sheet steel

Colour of interior fittings

RAL 9002

Storage levels

1 Stk

Storage areas

1 Stk

min. setting height

1970 mm

Accessories

Yes

Number of inspection windows

2 Stk

Configure and request

Certifications and DIN standards

Downloads

Technical datasheet

Dimension sheet gas cylinder depots

Operating instructions gas cylinder depots

DÜPERTHAL connect – Intelligent storage management for hazardous resources.

DÜPERTHAL connect is an intelligent solution for managing hazardous material storage. It enables digital networking and monitoring of hazardous material storage via smartphone, tablet, or desktop PC. DÜPERTHAL connect helps companies optimize processes, increase safety, and improve efficiency in handling hazardous substances.

Discover now

Comparison table


Model size	L	M	L	XL
External width	954 mm	654 mm	954 mm	1254 mm
External depth	400 mm	400 mm	400 mm	400 mm
External height	2053 mm	2053 mm	2053 mm	2053 mm
		To the product	To the product	To the product
