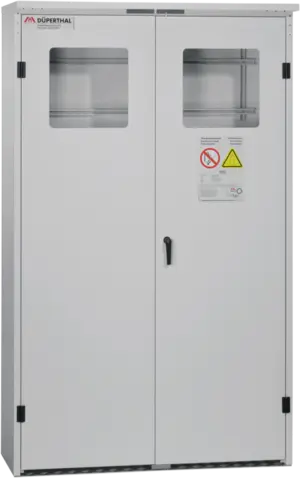

DEPOT XL - 70-201340-003 - Product Detail
Article number: 70-201340-003

DEPOT XL

Google reviews for dueperthal.com
Item is available for order
  • No safety distance around the gas cylinder depot necessary.
  • Good corrosion resistance with polyester powder coating RAL 9002 grey white on galvanised base material.
  • Robust construction made of sheet steel, material thickness 1.5 mm (0.6 inch).
  • 3-point locking system with door handle with security cylinder lock at an ergonomically favourable height.
  • Earthing possibility on the ceiling.
  • Chequer plate floor 3 mm (0.12 inch), including corrugation 4.5 mm (1.77 inch).
  • For each cylinder rack space, there are 2 penetrations in the ceiling, each Ø 22 mm (0.87 inch), for 13.5 (5,3 inch) PG fittings (closed with plastic plugs).
  • 2 horizontal installation rails for mounting fittings.

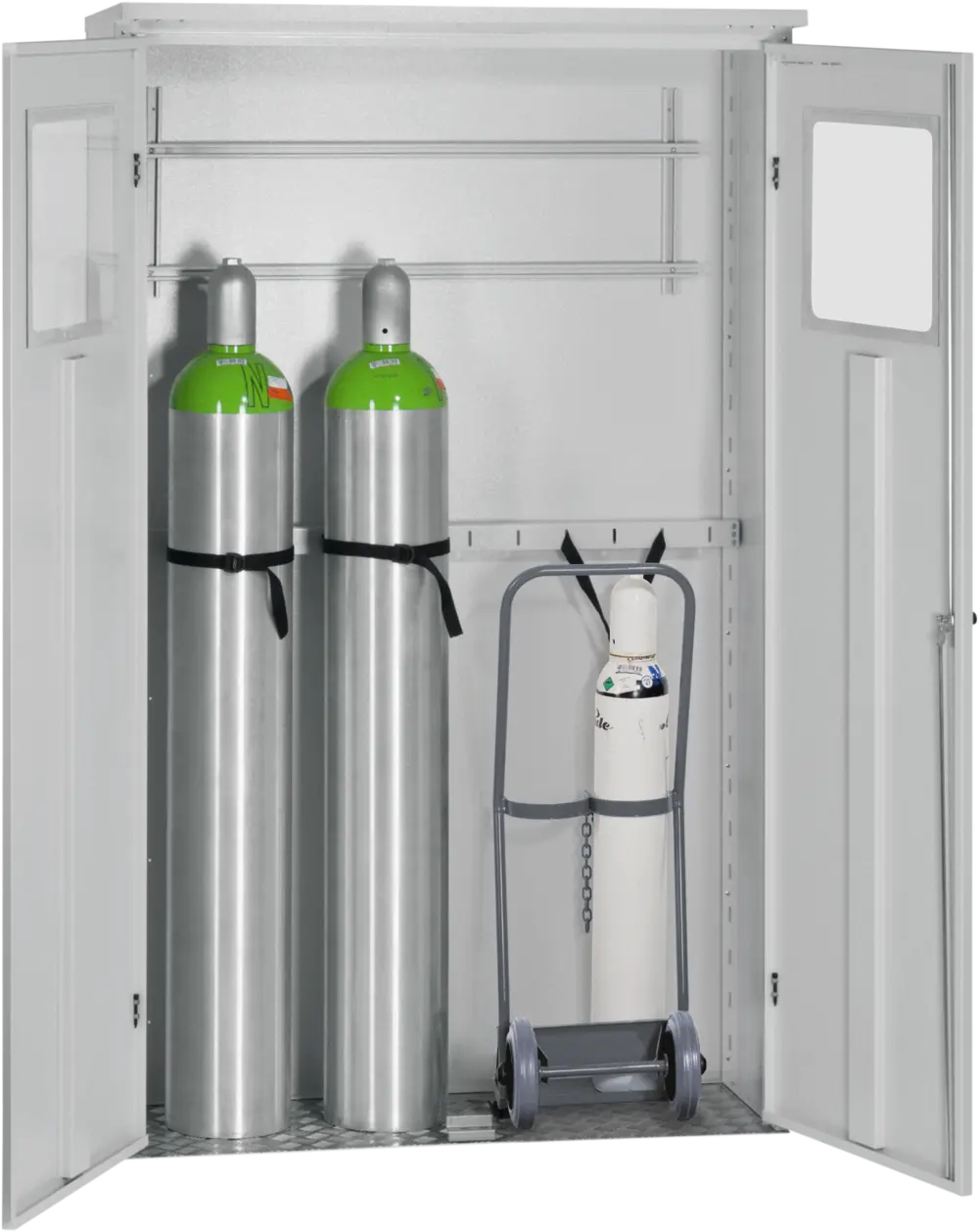

  • One cylinder holder with one retaining belt per standing space.
  • Prepared for ground fixing.
  • Natural ventilation in accordance with TRGS.
  • Labelling with warning symbol W19.
  •
Door colors
silber
Body colors
silber

Specifications

Pass-throughs for PG fittings in the cabinet ceiling
Pass-throughs for PG fittings in the cabinet ceiling
Optional design with inspection window
Optional design with inspection window
Access protection via cylinder lock with 3-point locking system
Access protection via cylinder lock with 3-point locking system
Smooth wing door technology
Smooth wing door technology

Technical details

Product range
Safety storage cabinet
Product category
Gas cylinder - outside storage
Line
DEPOT
Size
XL
Functionality
Storage
Earthing connection
Yes
Outer width
1254 mm
Outer depth
400 mm
Outer height
2053 mm
Max. load bearing capacity per storage area
150 kg
Number of gas cylinder retaining belts
4 Stk
Weight (product)
125 kg
Material of cabinet cladding
Sheet steel
Cabinet colour
RAL 9002
Material of inner lining
Sheet steel
Colour of inner lining
RAL 9002
No. of doors
2 Stk
Kind of door
Wing door
Material of door cover
Sheet steel
Door colour
RAL 9002
Door operation
Classical
Door technology
Classical
Door handle
Lever handle black PA
Lock
Cylinder lock
Locking system
Open
Locking points
3-point
Material of interior fittings
Sheet steel
Colour of interior fittings
RAL 9002
Storage levels
1 Stk
Storage areas
1 Stk
setting height
1970 mm
Accessories
Yes
Number of inspection windows
2 Stk
DEPOT XL

Certifications and DIN standards

DÜPERTHAL connect – Intelligent storage management for hazardous resources.

DÜPERTHAL connect – Intelligent storage management for hazardous resources.

DÜPERTHAL connect is an intelligent solution for managing hazardous material storage. It enables digital networking and monitoring of hazardous material storage via smartphone, tablet, or desktop PC. DÜPERTHAL connect helps companies optimize processes, increase safety, and improve efficiency in handling hazardous substances.

Comparison table

DEPOT XL DEPOT M DEPOT L DEPOT XL
Model size XL M L XL
External width 1254 mm 654 mm 954 mm 1254 mm
External depth 400 mm 400 mm 400 mm 400 mm
External height 2053 mm 2053 mm 2053 mm 2053 mm
To the product To the product To the product
