Article number: 39-201267-030

HSC XL

Google reviews for dueperthal.com

Item is available for order

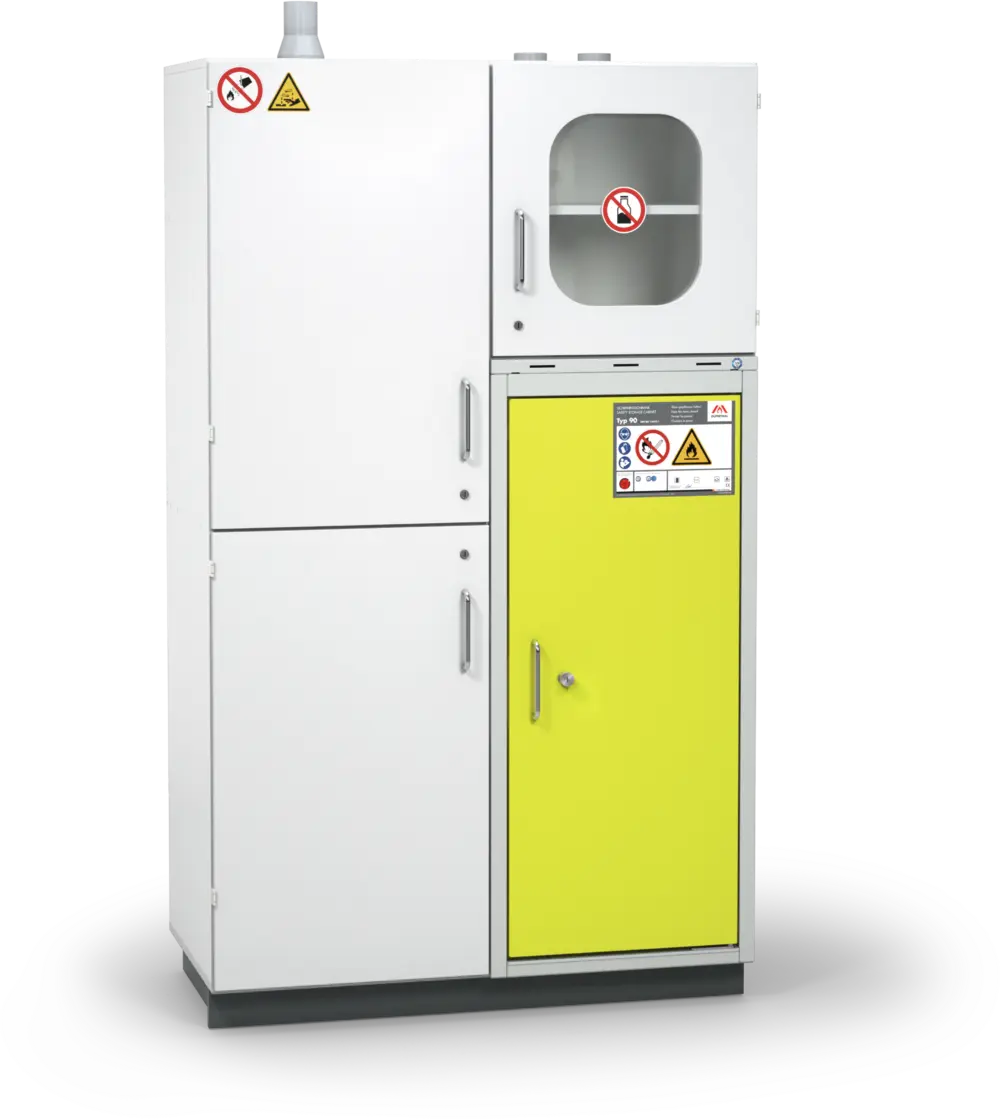

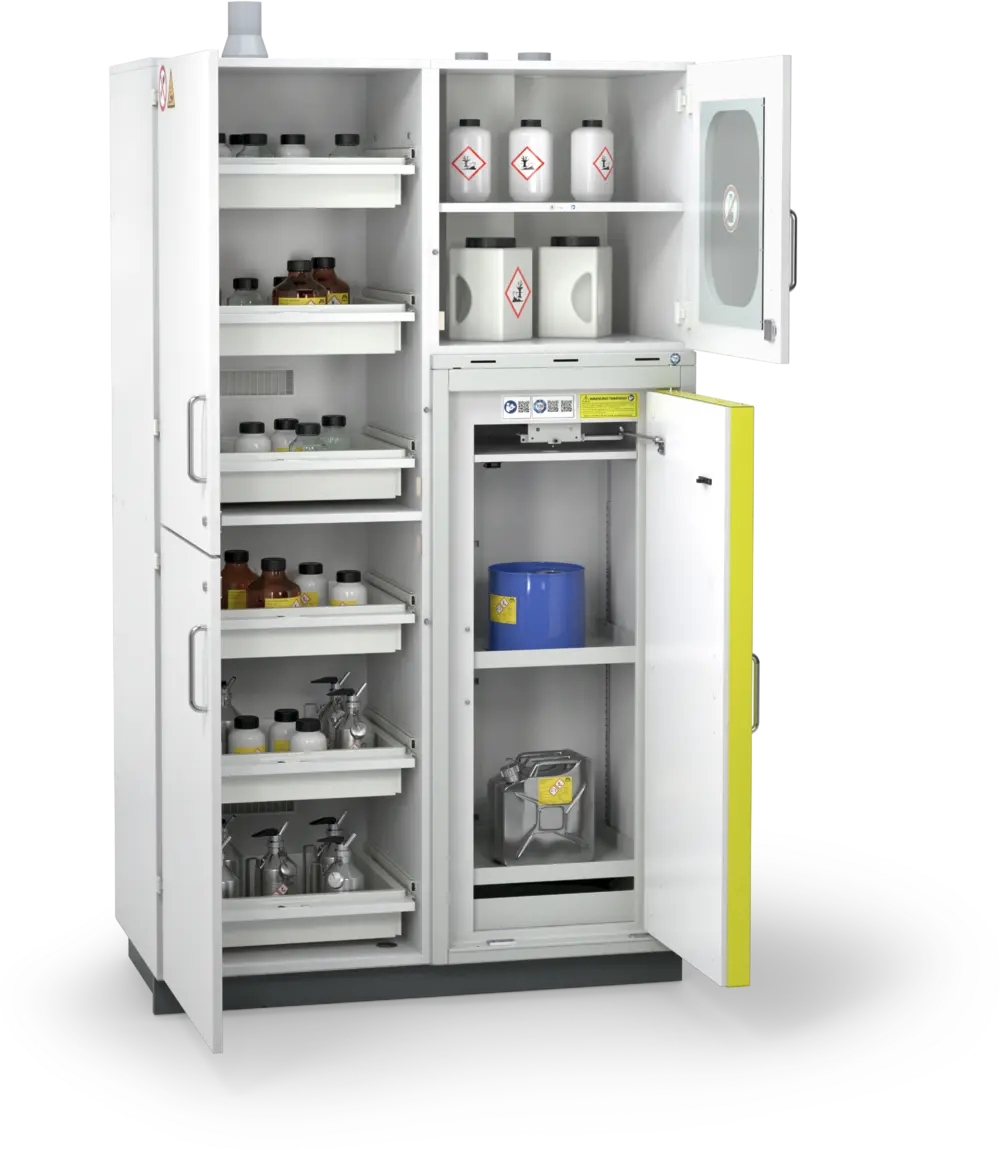

The HSC Hazardous Substances Centre by DÜPERTHAL offers a lot of room for optimal storage of acids, lye and flammable liquids with fire protection of 90 minutes.

Health
Ventilation on each cabinet level provides optimised air exchange.
Safety
Safe storage of various hazardous substances in the smallest space.
Working safety
Equipotential bonding saddles as a standard on the cabinet help to prevent spark formation

Door colors

RAL 1018

RAL 7035

Body colors

RAL 7035

Download datasheet Configure and request Gallery Accessories

Specifications

All doors can be locked separately

Slide-out trays for optimal space utilization and maximum visibility

Automatic door closure in case of fire

Efficient airflow for low energy consumption

Soft-close door mechanism

Storage of various hazardous substances

Type 90 - 90-minute fire protection

Impact protection through recessed base

Technical details

Product range

Safety storage cabinet

Product category

Type 90 - combined storage

Line

HSC

Size

Type

Storage type

passive storage

Functionality

Storage

Earthing connection

Yes

Connection socket

Yes

TÜV Süd certificate no.

Z1A 012906 0520

TÜV-Süd certificate type

DIN EN 14470-1

Yes

DIN EN 16121/16122

Yes

CE conformity

Yes

Outer width approx.

1194 mm

Outer depth approx.

612 mm

Outer height approx.

2045 mm

Weight (product) approx.

375 kg

Cabinet colour

RAL 7035

Colour of inner lining

RAL 7035

Base

Classical

Base height approx.

89 mm

Base colour

RAL 7015

No. of doors

Kind of door

Wing door

Door colour

RAL 1018 / RAL 7035

Door operation

Classical

Door technology

Classical

Door handle

Bow handle matt nickel

Lock

Cylinder lock

Locking system

Open

Locking points

1-point

Colour of interior fittings

RAL 7035

Bottom tray

Fixed/extendable

Pull-out shelf

Yes

Storage shelf

Yes

Accessories

Yes

Top cabinet

Storage shelf

Side cabinet

ACID

Configure and request

Certifications and DIN standards

Downloads

Technical datasheet

Tender specification

Dimension sheet HSC XL

Operating Instructions

Type certificate (GS)
