Article number: 79-201460-021

SUPREME standard XXL

Google reviews for dueperthal.com

Item is available for order

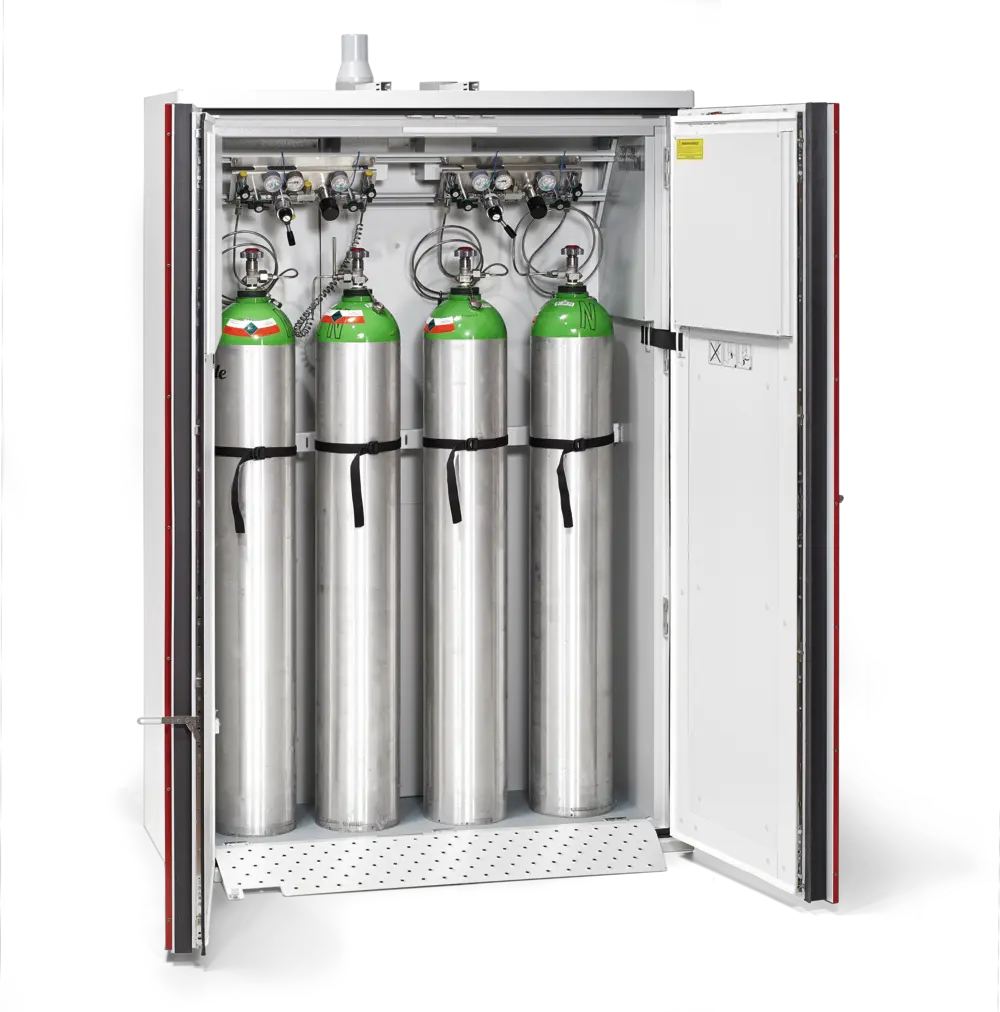

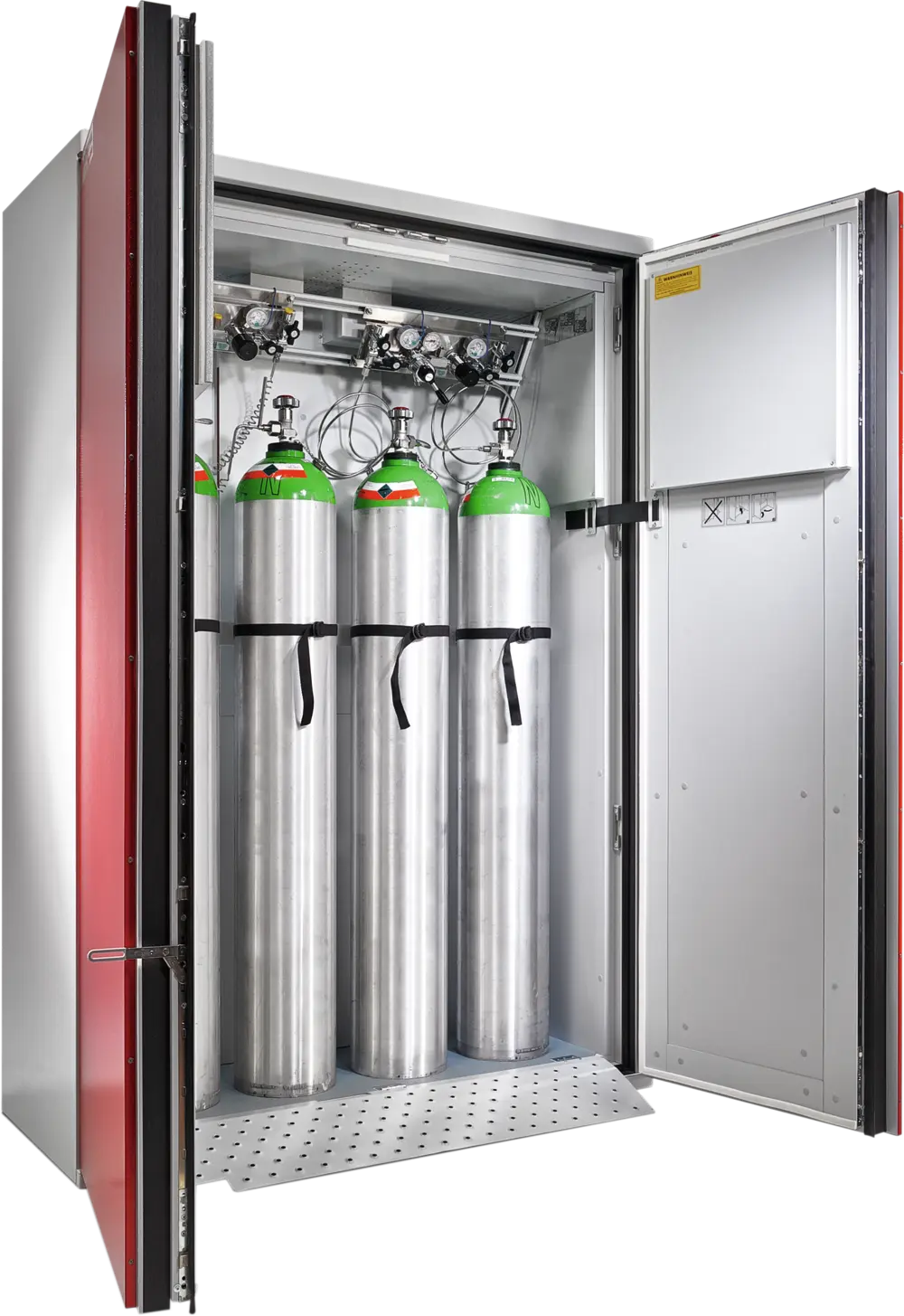

Discover the optimum solution from DÜPERTHAL for the storage of pressurised gas cylinders of all sizes with 90-minute fire protection. Experience the comfort and flexibility of being able to equip your workplace to meet your precise needs.

The highest fire protection for your safety
Maximum safety with Type G90 technology for a continuous fire protection concept that meets the highest standards.
Upper-level style for your health
Optimised ventilation ducts provide an efficient air flow system to extract any escaping gas within the cabinet.
Increased lifetime for your investment
Duration test acc. to DIN EN 16121/16122, but 90,000 instead of 50,000 cycles in dynamic load test.

Door colors

RAL 1004

RAL 7035

RAL 3003

RAL 9010

Body colors

RAL 1004

RAL 7035

RAL 3003

RAL 9010

To comparison table Download datasheet Configure and request

Specifications

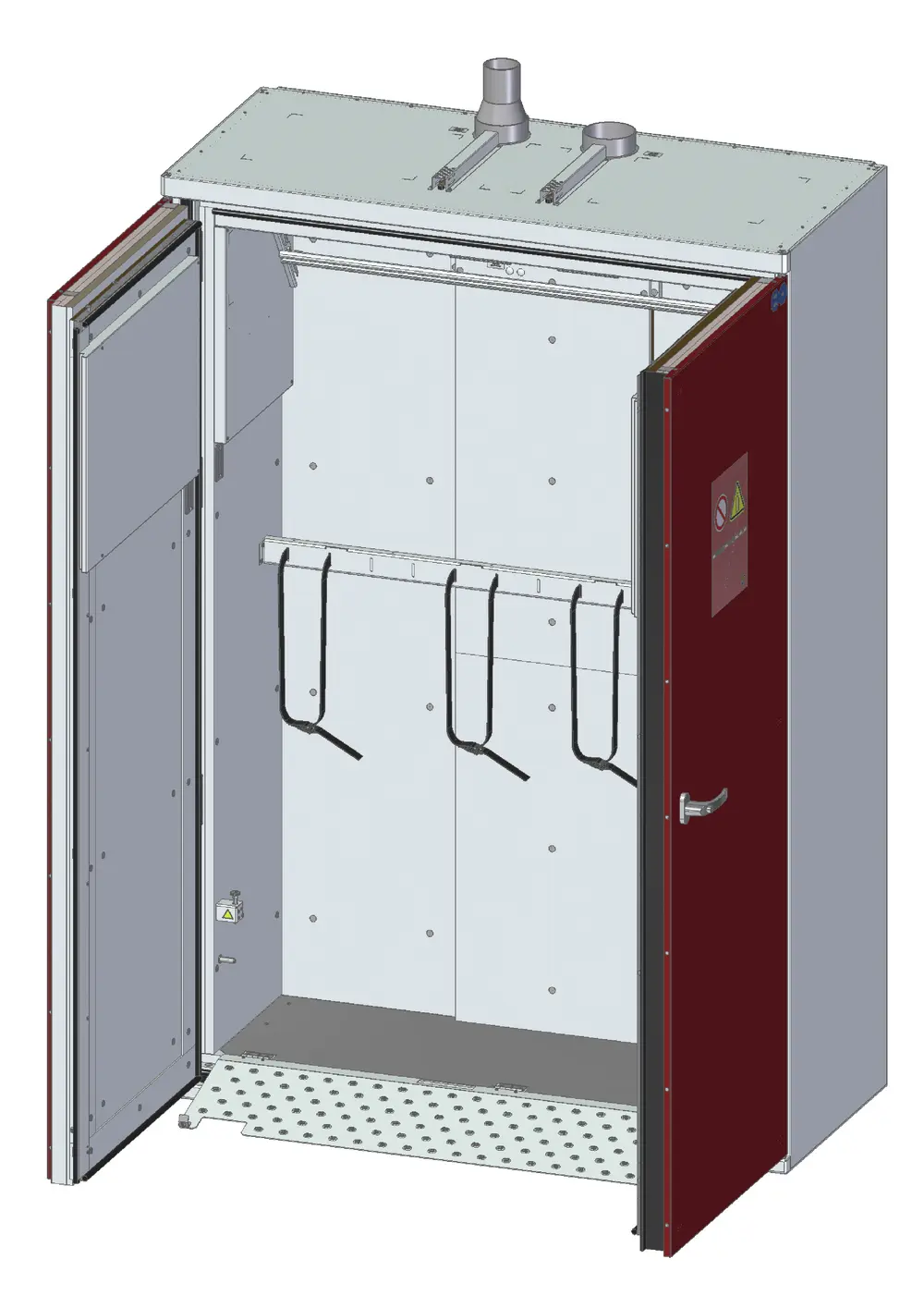

Drill areas marked for gas lines and cables

Efficient ventilation in every cabinet level

Type G90 - 90-minute fire protection

Smooth wing door technology

Opening angle can be adjusted steplessly

Technical details

Product range

Safety storage cabinet

Product category

Type G90 - gas storage

Line

SUPREME

Version

standard

Size

XXL

Type

G90

Functionality

Storage

Earthing connection

Yes

Connection socket

Yes

TÜV Süd certificate no.

Z1A 012906 0523

TÜV-Süd certificate type

Z2 012906 0513

DIN EN 14470-2

Yes

DIN EN 16121/16122

Yes

Outer width

1395 mm

Outer depth

610 mm

Outer height

2030 mm

Max. load bearing capacity per storage area

400 kg

Max. load

400 kg

Max. total weight

1085 kg

Number of gas cylinder retaining belts

4 Stk

Weight (product)

680 kg

Material of cabinet cladding

Sheet steel

Cabinet colour

RAL 7035

Material of inner lining

Decor panels

Colour of inner lining

RAL 7035

No. of doors

2 Stk

Kind of door

Wing door

Material of door cover

Sheet steel

Door colour

RAL 3003

Door operation

Classical

Door technology

Classical

Door handle

Window handle matt chrome

Lock

Cylinder lock

Material of interior fittings

Sheet steel

Colour of interior fittings

RAL 7035

setting height

1826 mm

Fitting holder

Yes - Position A

Number of cylinder holders

1 Stk

Configure and request

Certifications and DIN standards

Downloads

Technical datasheet

Dimension sheet SUPREME

Dimension sheet shelf for side installation

Dimension sheet storage shelf, angled arrangement

Operating instructions SUPREME standard, ECO standard

Dimension sheet storage shelf

Dimension sheet U-rails pre-installed

High Quality Certificate

type certificate (GS)

DÜPERTHAL connect – Intelligent storage management for hazardous resources.

DÜPERTHAL connect is an intelligent solution for managing hazardous material storage. It enables digital networking and monitoring of hazardous material storage via smartphone, tablet, or desktop PC. DÜPERTHAL connect helps companies optimize processes, increase safety, and improve efficiency in handling hazardous substances.

Discover now

Comparison table


Model size	XXL	S	M	L	XL
Model type	standard	standard	standard	standard	standard
External width	1395 mm	595 mm	595 mm	895 mm	1195 mm
External depth	610 mm	610 mm	610 mm	610 mm	610 mm
External height	2030 mm	1375 mm	2030 mm	2030 mm	2030 mm
		To the product	To the product	To the product	To the product
