Article number: 29-060959-003

UTS pro M-5

Google reviews for dueperthal.com

Item is available for order

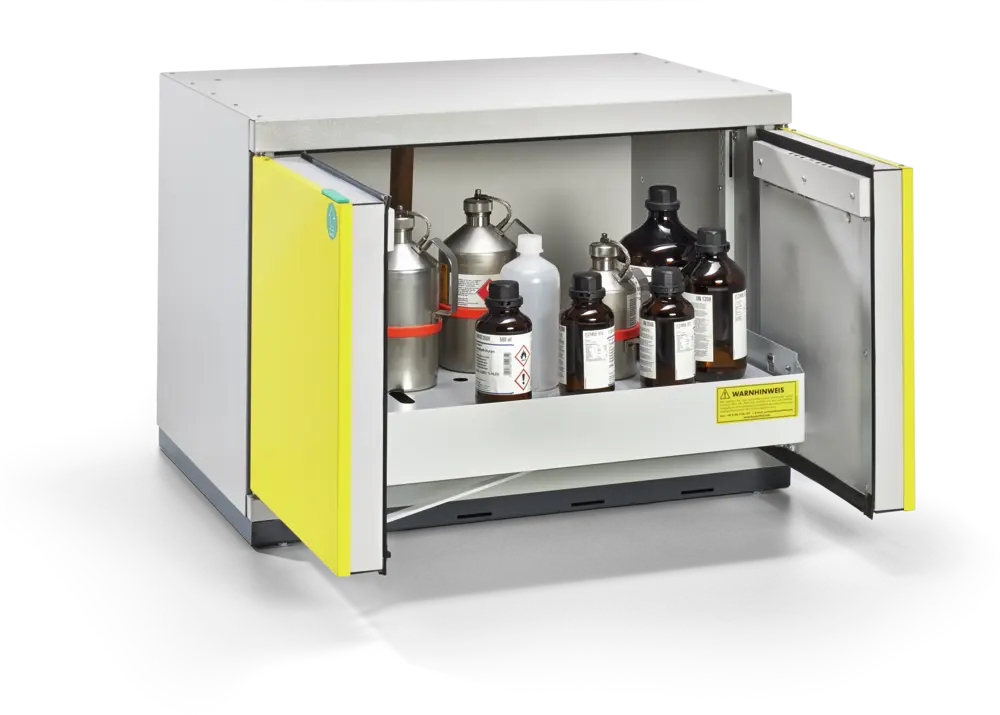

The safety storage cabinets of the UTS line are specially constructed for the storage of hazardous substances close to where they are needed. With the UTS line, all containers are always safely stored and at your fingertips when you need them.

Health
Ideal layout of ventilation ensures an optimised air exchange.
Safety
In case of fire, a thermocouple automatically initiates the uninterrupted closing of the doors.
Working safety
Equipotential bonding saddles as a standard on the cabinet help to prevent spark formation.

Door colors

RAL 1004

RAL 1018

RAL 7035

RAL 9010

Body colors

RAL 1004

RAL 1018

RAL 7035

RAL 9010

To comparison table Download datasheet Configure and request

Specifications

Pull-out tray extends automatically

Automatic door closure in case of fire

Interior fittings conductive and connected to the body

Potential equalization tabs to prevent sparking

Type 90 - 90-minute fire protection

Smooth wing door technology

Efficient airflow for low energy consumption

Technical details

Product range

Safety storage cabinet

Product category

Type 90 - flammable liquids

Line

UTS

Version

pro

Size

M-5

Type

Storage type

passive storage

Functionality

Storage

Earthing connection

Yes

Connection socket

Yes

TÜV Süd certificate no.

Z1A 012906 0521

TÜV-Süd certificate type

Z2 012906 0513

DIN EN 14470-1

Yes

DIN EN 16121/16122

Yes

Outer width

889 mm

Outer depth

494 mm

Outer height

631 mm

Max. load bearing capacity per storage area

40 kg

Max. load

40 kg

Max. total weight

175 kg

Max. volume of single container

12 L

Collection volume

13,9 L

Weight (product)

137 kg

Material of cabinet cladding

Sheet steel

Cabinet colour

RAL 7035

Material of inner lining

Decor panels

Colour of inner lining

RAL 7035

Base

Classical

Base height

35 mm

Base colour

RAL 7015

No. of doors

2 Stk

Kind of door

Wing door

Material of door cover

Sheet steel

Door colour

RAL 1018

Door operation

One-hand

Door technology

Push-to-open

Lock

Cylinder lock

Locking system

Open

Locking points

1-point

Material of interior fittings

Sheet steel

Colour of interior fittings

RAL 7035

Bottom tray

Extendable

Bottom tray insert

Perforated sheet insert

Storage levels

1 Stk

Storage areas

1 Stk

min. setting height

340 mm

Configure and request

Certifications and DIN standards

Downloads

Technical datasheet

Operating instructions UTS/BENCH

Dimension sheet UTS standard

Dimension sheet UTS pro

Type certificate (GS)

Type certificate (FM)

High Quality Certificate

Instruction pipe penetration UTS, BENCH

Dimension sheet additional pull-out tray

Installation instruction pipe penetration UTS

Dimension sheet roller set

DÜPERTHAL connect – Intelligent storage management for hazardous resources.

DÜPERTHAL connect is an intelligent solution for managing hazardous material storage. It enables digital networking and monitoring of hazardous material storage via smartphone, tablet, or desktop PC. DÜPERTHAL connect helps companies optimize processes, increase safety, and improve efficiency in handling hazardous substances.

Discover now

Comparison table


Model size	M-5	S-5	S	M-5	M	L-5	LD-5	L	LD	XL-5	XL
Model type	pro	pro	pro	pro	pro	pro	pro	pro	pro	pro	pro
External width	889 mm	601 mm	601 mm	889 mm	889 mm	1100 mm	1100 mm	1100 mm	1100 mm	1400 mm	1400 mm
External depth	494 mm	494 mm	594 mm	494 mm	594 mm	494 mm	494 mm	594 mm	594 mm	494 mm	594 mm
External height	631 mm	631 mm	631 mm	631 mm	631 mm	631 mm	631 mm	631 mm	631 mm	631 mm	631 mm
		To the product	To the product	To the product	To the product	To the product	To the product	To the product	To the product	To the product	To the product
